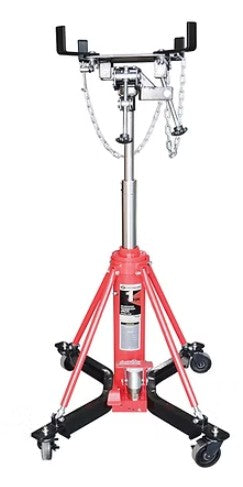

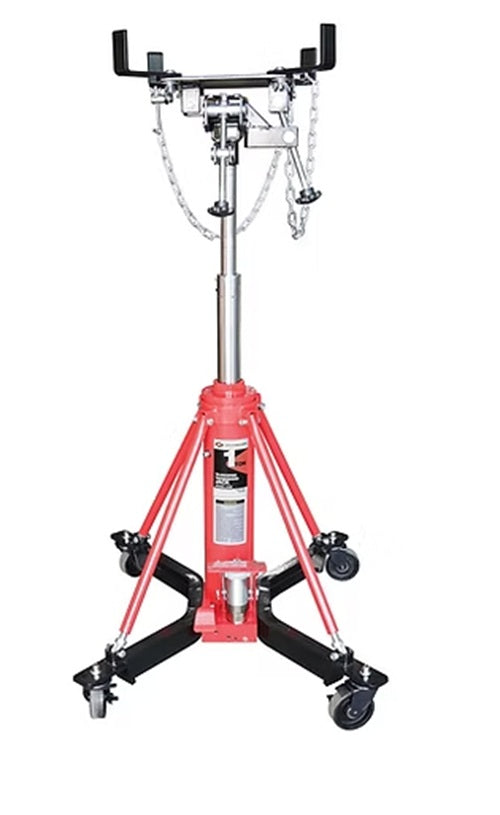

AFF 3102 Transmission Jack 2000 Lb Manual Hydraulic

Features:

• Two stage telescopic ram designed for medium duty transmissions, transfer cases, and differentials
• Double pump hydraulic system for quick lift operation
• Powder coat finish provides resistance to corrosion, chemicals, and scratches
• Chrome plated pump core and piston rod reduces friction and provides long service life
• Adjustable saddle with corner bracket and safety chain
• Optional Fuel Tank Adapter (Model 3198) available. Includes safety straps and grounding cables.
• Adheres to ASME 2014

Specifications:

• Rated Capacity | 2,000 lbs
• Stroke 1st Stage | 19"
• Stroke 2nd Stage | 20"
• Low Height | 37"
• High Height | 76"
• Front Tilt | 28°
• Rear Tilt | 49°
• Base Width | 28" x 32"
• Operation | Manual Hydraulic
• Weight | 174 lbs

This AFF Transmission Jack ships by truck and extra shipping charges will apply to ship to a non-commercial address.

Why buy AFF: AFF has been providing shop equipment since 1963. Unlike many import models, service and parts are available at over 250 service centers across the U.S.
