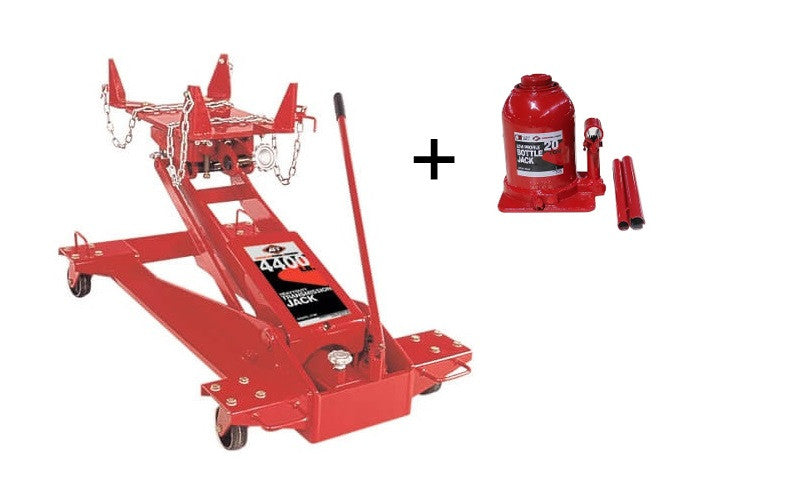

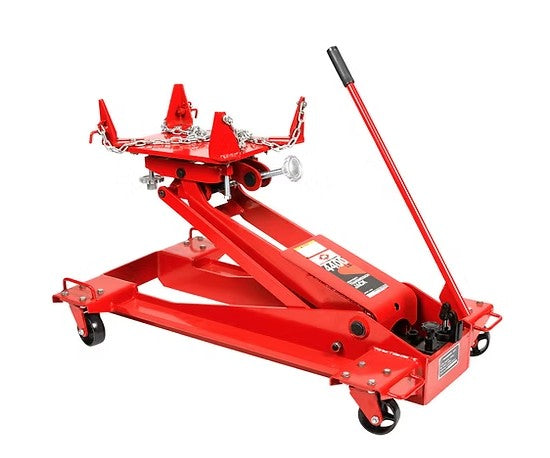

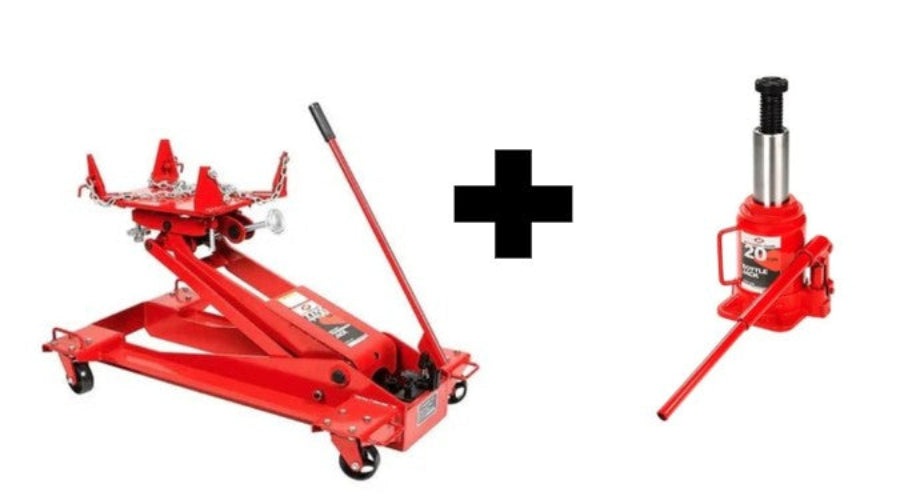

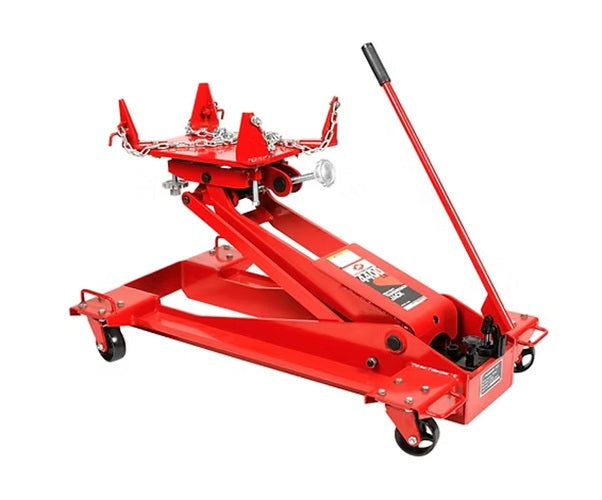

AFF 3180A 4,400 LB Heavy-Duty Transmission Jack With FREE   AFF3620S Bottle Jack

AFF has the only super heavy-duty transmission jack with a 4,400 lb. capacity. Built "forge-tough" to handle removal, transport and installation of transmissions, transfer cases or differentials on heavy-duty trucks, buses, agricultural and construction equipment.

Features for the 3180A:

• Fully adjustable saddle with maximum tilt for easier alignment
• Adjustable corner brackets
• Convenient side trays for small tools and parts
• Safety overload bypass system to prevent hydraulic damage
• 32" handle pivots 360° around pump
• Rugged industrial-grade 4" casters
• 2009 ASME/PALD compliant

Specifications for the 3180A:

• Capacity | 4400 lbs
• Low Height | 8-1/2"
• High Height | 34"
• Forward Tilt | 15 degrees
• Rear Tilt | 30 degrees
• Left Tilt | 12 degrees
• Right Tilt | 12 degrees
• Head Width | 12" - 18"
• Head Length | 16" - 20"
• Width | 26"
• Length | 43"
• Ship Weight | 374 lbs

Features for the 3620S:

• Widely used in heavy duty truck, agriculture, mining, and oil field applications
• Constructed of high-grade steel and built to exacting standards
• Fully welded cylinder for maximum strength
• Forged base for extra durability and leak free operation
• Extension screw provides adjustment for maximum height
• Oil by-pass system provides overload protection
• Meets ANSI/ASME PALD 2014

Specifications for the 3620S:

• Capacity | 20 Ton Short
• Type | Manuel
• Min Height | 7.48"
• Max Height | 13.78"
• Weight | 17.86 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
• MADE IN CHINA
