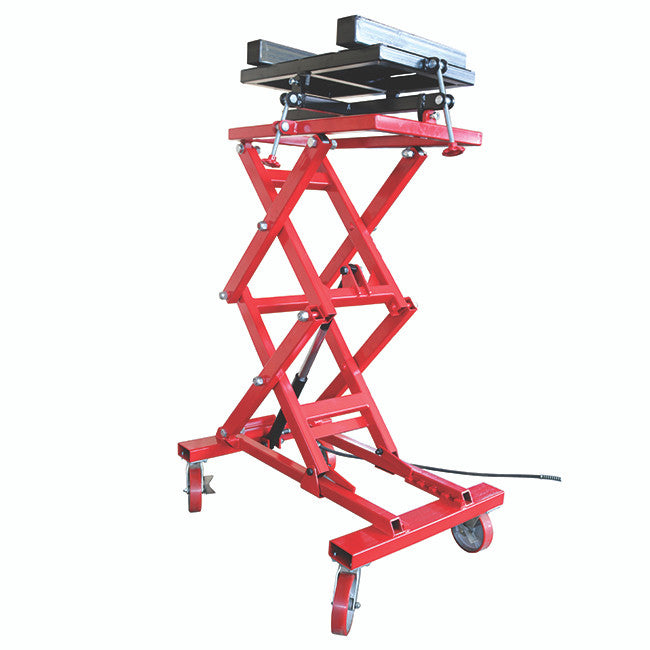

AFF 3182 2,500 LB Capacity Power Train Lift/Table

This lift handles transmissions and fuel tanks as well as engines, trans-axles, large electric vehicle batteries, and more. It also serves as a work table where components can be lowered to a stable and secure work height for on site repair.

Features:

• Unique safety latches at 30%, 50%, and 80% of max height provides additional operator safety
• Air assist foot pump with nine foot extension allows access anywhere around the work area perimeter and provides hands free operation
• Scissors lift design allows access to all four sides of a component
• 8" diameter swivel casters for easy maneuverability under the heaviest loads
• Lifts from 33" to 77"
• Compact design makes the unit easy to store
• 2009 ASME/PALD compliant

Specifications:

• Capacity @ 100 PSI | 2,500 lbs
• Low Lift Height | 33"
• High Lift Height | 77"
• Overall Length | 48"
• Overall Width | 33"
• Overall Height | 33"
• Table Size | 20" x 30"
• Table Tilt | +/- 10°
• Ship Weight | 625 lbs
