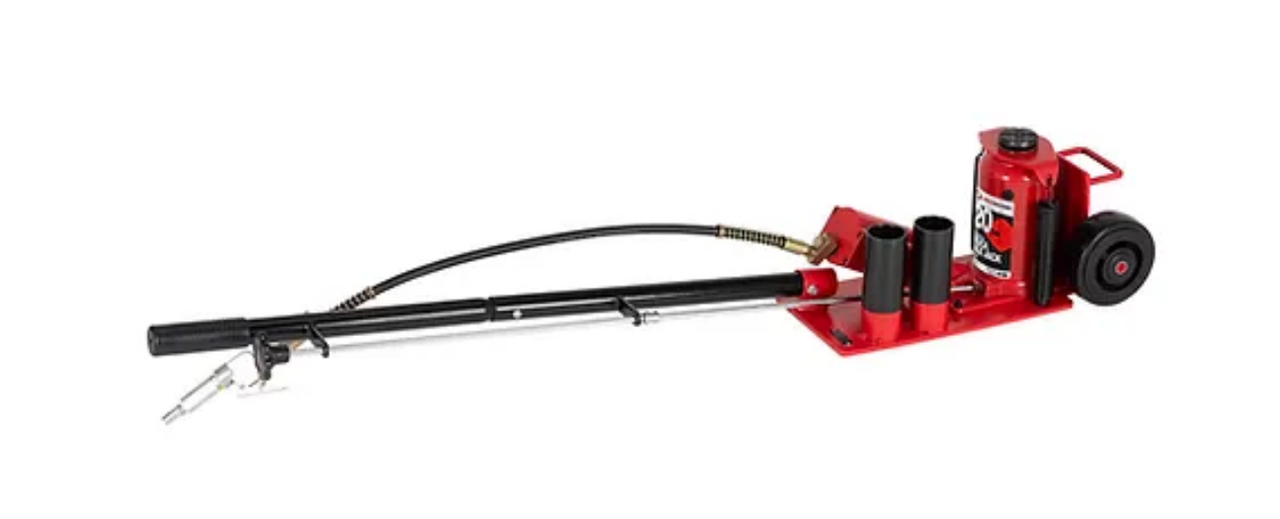

AFF 520 20-ton Air Assist Floor Jack

AFF 520 Designed for lifting trucks, buses, trailers, or other heavy equipment in the shop or on the road, these axle floor jacks are compact, easy to maneuver, and highly efficient.

Features:

• Ideal for lifting trucks, trailers, and other heavy-duty equipment
• Lightweight design is ideal for mobile repair service
• Self-retracting ram eliminates manual lowering of the jack
• Oil-resistant polyurethane-wrapped wheels provide increased mobility around the shop floor
• Fast, efficient air motor reduces time to lift the load
• Narrow chassis design fits easily between tandem wheels
• Overload and bypass safety valves prevent the jack from being used beyond its rated capacity
• Wiper seals protect hydraulic system from outside contaminants
• Integrated filter protects air motor and maximizes service life
• Hand grip can be used to store in the vertical position
• Meets ASME PASE 2019 Safety Standards

Specifications:

• Ram Lift | 3.94"
• Low Height | 8.66"
• High Height w/ Extensions | 23.55"
• Length | 17.78"
• Overall Width | 8.9"
• Handle Length | 35.5"
• Weight | 55 lbs
