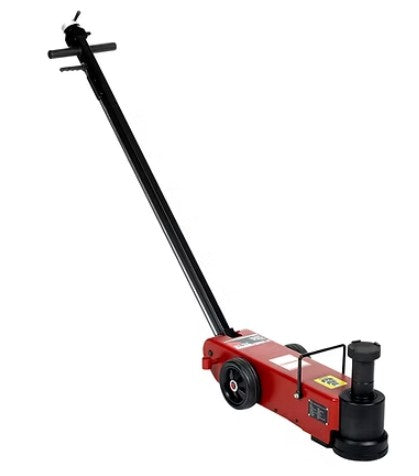

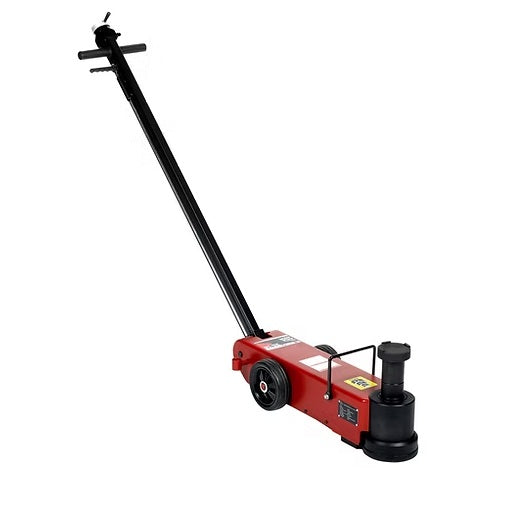

AFF 546SD 25-10 Ton Super Duty 2 Stage Air/Hydraulic Axle Jack

AFF 546 SD is SUPER HEAVY DUTY, 2 Stage 25 Ton and 10 Ton built tough for the rigors of the Heavy Duty Trucking, Agricultural and Fleet business

Description:

• The piston head seal design is borrowed from Industrial technology providing a superior low and high pressure seal, giving this jack a much better hold under severe load conditions
• The extra long 138cm (54”) handle can be locked in 3 positions for easy positioning of this jack in hard to reach places.
• Integral Descent Metering maintains a controlled and safe lowering of the load
• Single piece base construction provides superior strength for increased load stability
• Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring
• Air assisted lowering speeds up ram retraction
• Built in overload safety valve prevents damage to unit due to excessive load
• Comes with 2 extensions (75mm/3” + 45 mm1.75”) and saddle adapter
• Units are tested to -13F(-25C) and +113F(+45C) as well as off center loading to ensure a long life under even the harshest conditions

Specifications:

• Model | 546SD
• Capacity (tons) | 25/10
• Ram Lift | 3.82"/7.56"
• Low Height | 7.28"/7.28"
• High Height | 11.10"/14.84"
• High Height (with extensions) | 16.85"/20.59"
• Working Air Pressure | 116 to 174 PSI
• Ship Weight | 128 lbs
