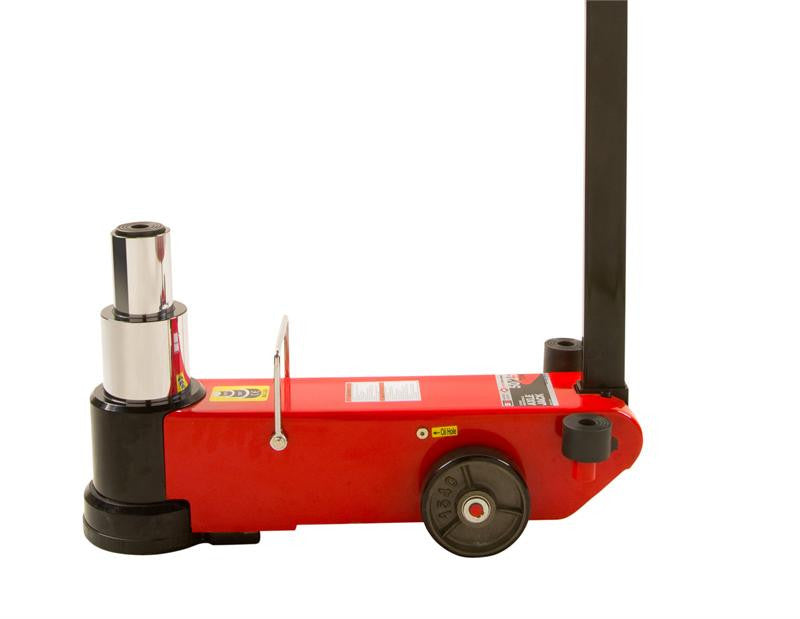

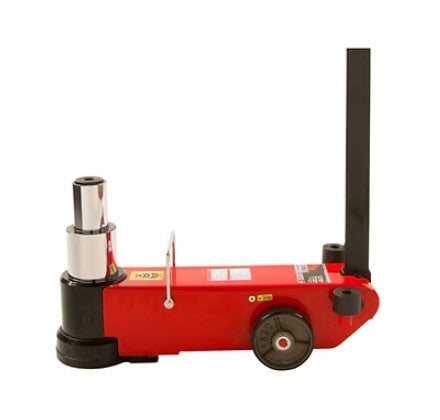

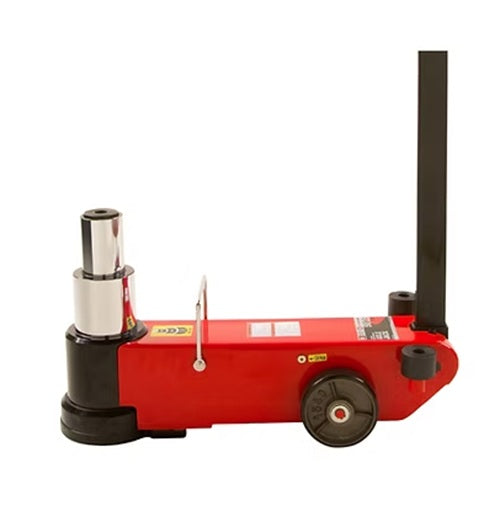

AFF 547 SD 25-10 Ton Super Duty 2 Stage Air/Hydraulic Axle Jack

The AFF is SUPER HEAVY DUTY, 2 Stage 50 Ton and 25 Ton built tough for the rigors of the Heavy Duty Trucking, Agricultural and Fleet business.
The piston head seal design is borrowed from Industrial technology providing a superior low and high pressure seal, giving this jack a much better
hold under severe load conditions. The extra long 138cm (54”) handle can be locked in 3 positions for easy positioning of this jack in hard to reach places.

Features:

• Integral Descent Metering maintains a controlled and safe lowering of the load
• Single piece base construction provides superior strength for increased load stability
• Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring
• Air assisted lowering speeds up ram retraction
• Built in overload safety valve prevents damage to unit due to excessive load
• Comes with 2 extensions (75mm/3” + 45 mm1.75”) and saddle adapter

Specifications:

• Model | 547SD
• Capacity (tons) | 50/25
• Ram Lift | 4.61"/9.09"
• Low Height | 8.46"/8.46"
• High Height | 13.07"/17.56"
• High Height with Extensions | 18.82"/23.31"
• Working Air Pressure | 116 to 174 PSI
• Ship Weight | 165 lbs
