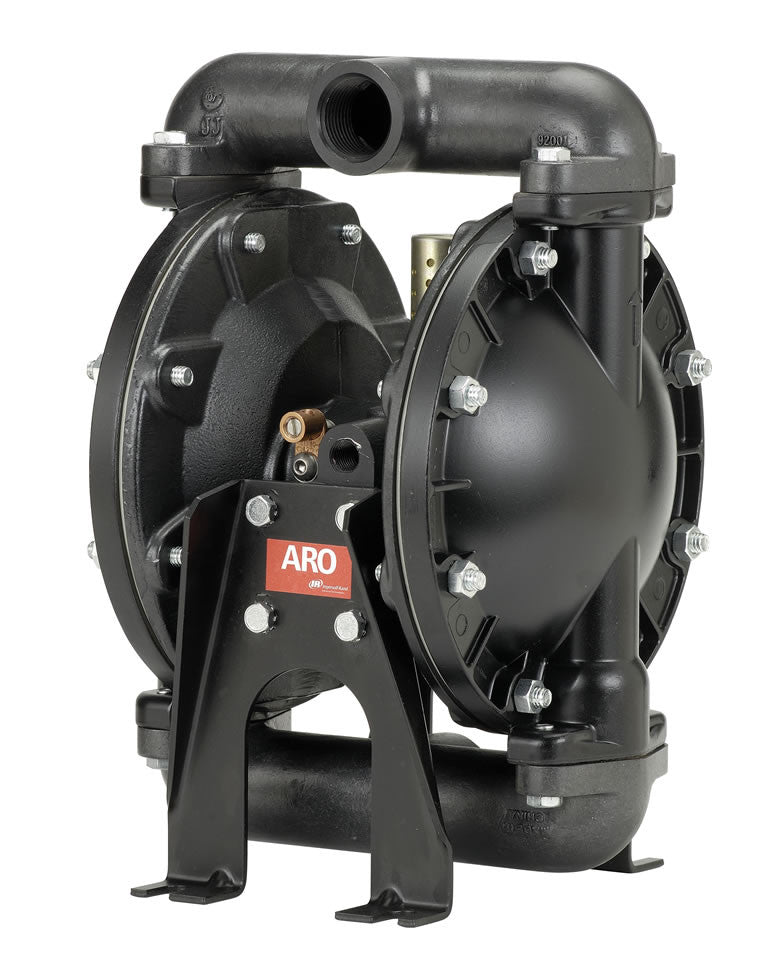

ARO 666100-3C9-C 1" Diaphragm Pump

Metallic Diaphragm Pump, Air Inlet NPT 1/4 Inch, Water Flow 22 GPM, NPTF Inlet/Outlet 1 Inch, Maximum Operating Pressure 120 PSI, Ball Material Polypropylene/Hytrel, Body Material Aluminum, Check Seat Material Polypropylene/Hytrel, Diaphragm Material Hytrel, Maximum Flow 38 CFM, Maximum Flow 35 GPM, Port Single, Maximum Suspended Solids Diameter 1/8 Inch, Air Operated

Replaced 666100-362-C

Specifications:

• ITEM | Air Operated Diaphragm Pump
• Type | Metallic Double Diaphragm
• Inlet/Outlet | 1"
• Flow | 22 gpm
• Max. Flow | 35 gpm
• Max. Flow | 38 cfm
• Max. Operating PSI | 120
• Body Material | Aluminum
• Diaphragm Material | Hytrel
• Ball Material | Acetal
• Check Seat Material | Polypropylene/Hytrel
• Air Inlet (F)NPT | 1/4"
• Manifold Connection | Single
• Max. Dia. Solids | 1/8"
• Max. Temp. | 150°F
• Self-Priming Dry | 10 ft
• Self-Priming Wet | 15 ft
