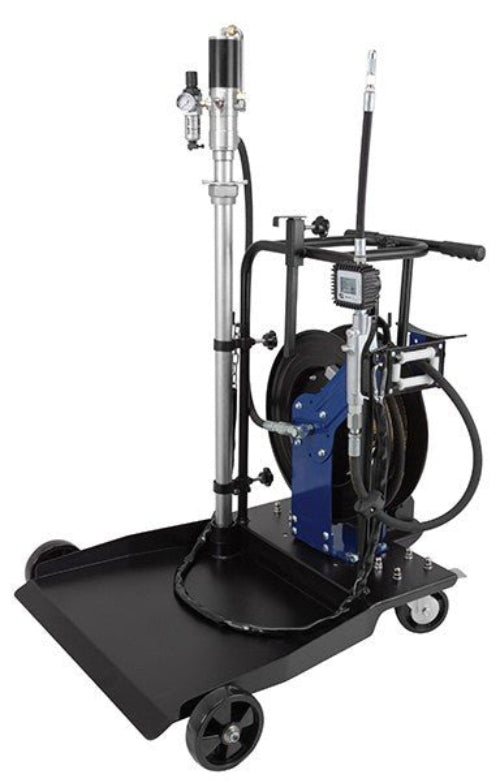

ATD-5226 Trolley Mounted Oil Pump Kit

Trolley mounted kits are ideal for use in workshops, garages and on shop floors. Provides complete portability for everyday oiling jobs. Designed for use with 55 gal. oil drums.

Specifications:

• Pump Type | Air Operated 3:1
• Flow Rate (at pump outlet) | Up to 14 LPM (3.70 GPM)
• Working Pressure | 2-10 BAR (30-150 PSI)
• Maximum Air Inlet Pressure | 10 BAR (150 PSI)
• Maximum Air Inlet Pressure | 30 BAR (450 PSI)
• Air Inlet Connection | 1/4” (F)
• Pump Outlet Connection | 1/2” (F)
• Air Consumption | 230 LPM (61 GPM)
• Max. Viscosity of Oil | SAE 130
• Max. Distance | Up to 30 metres (98.5 ft.)
• Hose Reel | Oil Hose reel (Dual Arm) complete with 10m (30') x 1/2" ID Rubber Hose
• Connecting Hose | Rubber Hose 1.5m ( 5') x 1/2" ID
• Oil Control Gun | Aluminum Body gun with protective rubber shroud, 1/2" Swivel & Digital Meter. Includes Flexible Hose with Manual Non Drip nozzle.
• Power Source for Meter | 2 x 1.5 V Alkaline batteries (size 1N)
• Measures in | Litres, Quarts, Pints & Gallons
• Least Count | 0.001 units
• Accuracy | +- 0.50 %
• Repeatability | +- 0.30 %
• Max. Resettable Batch Total | 99,999 units
• Max. Non-Resettable Totalizer | 9,99,999 units
• Air Control Unit | Miniature 1/4" Air Filter-Regulator combination with Pressure Gauge, 40 Micron Filter, 20 CFM (550 LPM)
• Noise Level | 81 db

Kit Includes:

• 3:1 air operated oil pump with 2" bung
• Oil hose reel with 30' x 1/2" oil hose
• Digital oil gun with flexible hose and manual non-grip tip
• Drum trolley with locking wheels
• 1/4" miniature filter/regulator combination
• Hose for connecting pump outlet to reel inlet
• Shipping Weight: 199 lbs.
