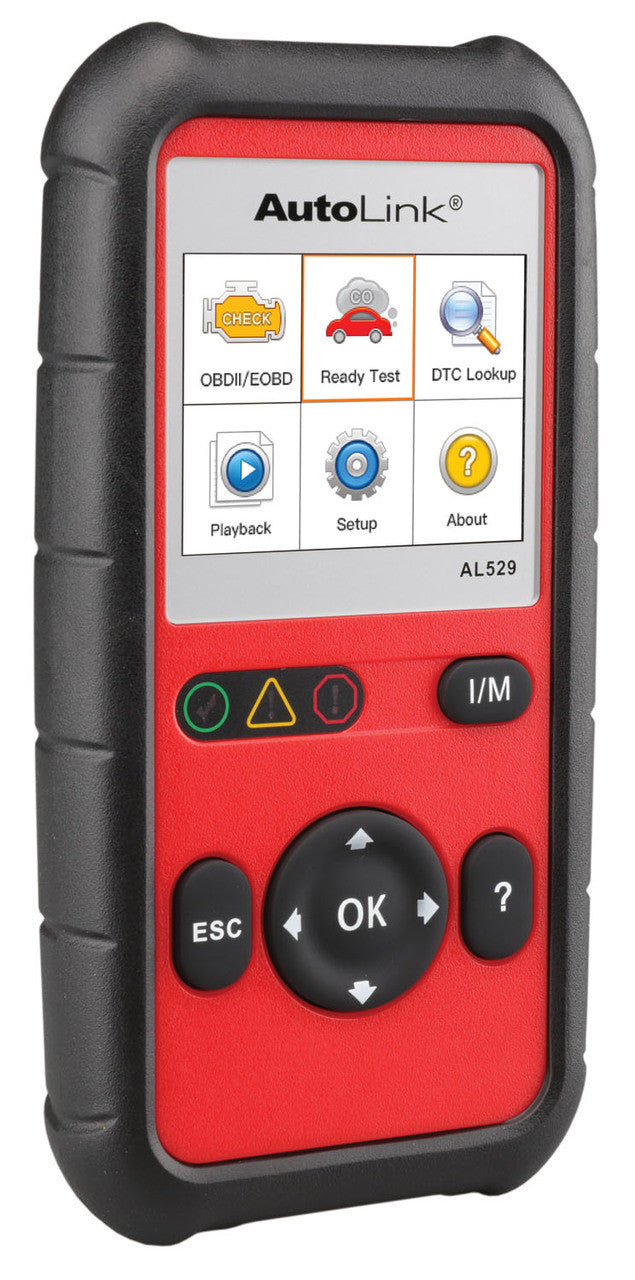

Autel AL529 AutoLink Pro Service Tool

The AutoLink AL529 OBDII Code Reader supports all 10 modes of OBDII test for complete vehicle diagnostics. The easy-to-use tool features a TFT color display and built-in speaker for visual and audible message cues and the patented One-Click I/M Readiness Key for quick State Emissions.

Features:

• AutoVIN function for quickly identifying manufacturer-specific codes
• Reads enhanced codes in Powertrain system for Ford, GM and Chrysler
• Compatible with domestic, Asian and European vehicles, 1996 and newer
• Retrieves generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1) and pending codes
• Enhanced OBD II Mode 6
• Retrieves vehicle identification information (VIN, CALID and CVN)
• Turns off Check Engine Light, clears codes and resets monitors
• Views freeze frame data
• Displays monitor and I/M readiness (emissions) status
• Reads live PCM data stream
• Displays live O2 sensor test data
• Graphs data
• Reads, stores and plays back live sensor data
• Troubleshooter code tips aid technician in efficient vehicle diagnostics and vehicle repair
• Patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification
• Bright color-coded LEDs and built-in speaker provide both visual and audible tone for readiness verification
• Multilingual (including English, Spanish and French) menu and DTC definitions
• Internet Updatable
• Prints data via Windows PC

Specifications:

• Display | 2.8-inch LCD (320x240 dpi)
• Connectivity | USB mini 2.0 OBD II DB15
• Operating Temp. | 0℃ to 60 ℃ (32℉ to 140℉)
• Storage Temp. | -20℃ to 70 ℃ (-1℉ to 158℉)
• External Power | 8.0 to 18.0V power provided via vehicle battery
• Dimensions | (LxWxH) 183 mm (7.2”) x 91 mm (3.58”) x 33 mm (1.3”)
• Weight | 237 g (0.522 lb.)
