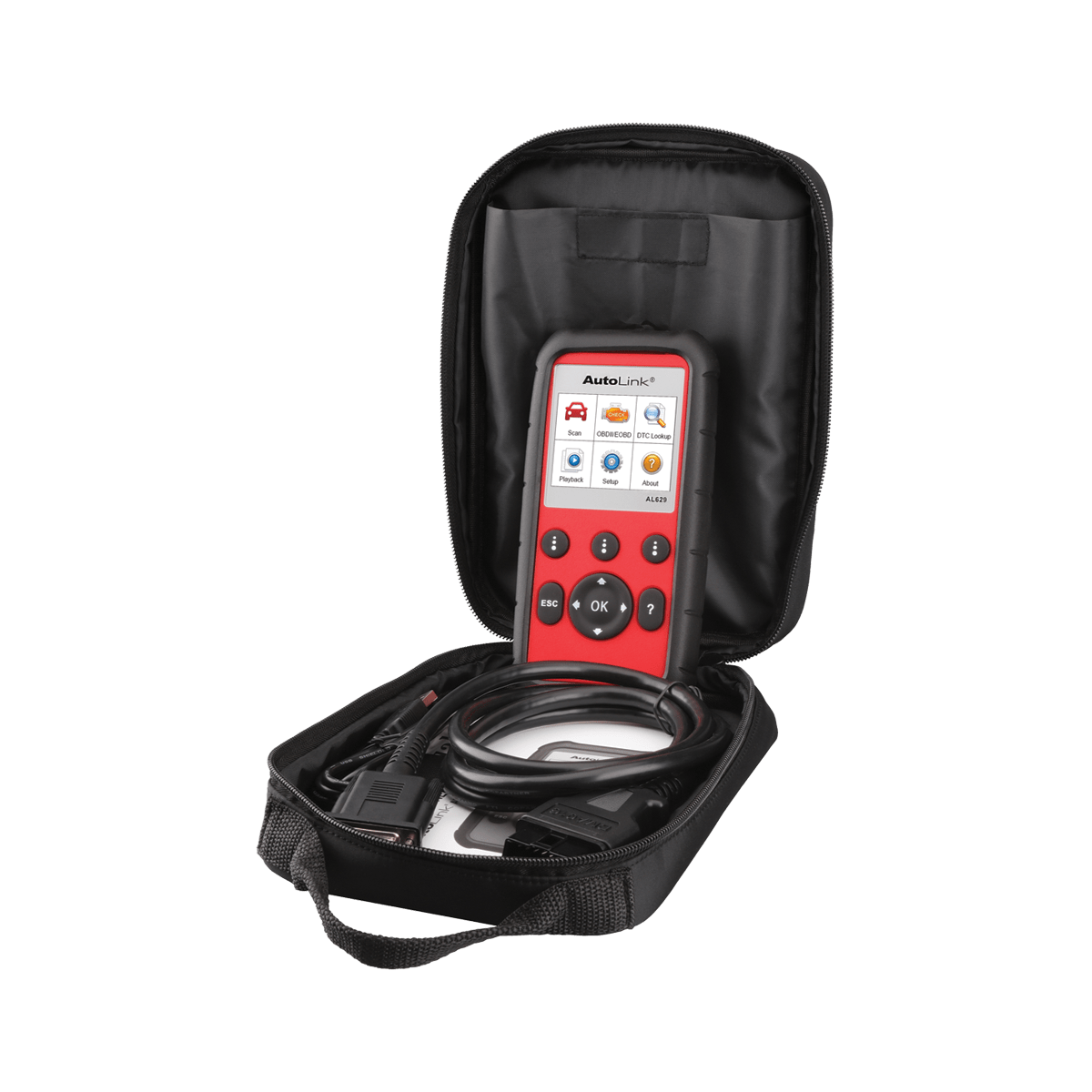

Autel AL629 AutoLink Pro Service Tool

The ABS/SRS/Engine/Transmission + CAN OBDII AutoLink AL629 is built to help you to determine why the Malfunction Indicator Light or the ABS/SRS warning light is on. Supporting all 10 test modes of OBDII test, AL629 provides you a complete diagnosis. A wide range of European, US and Asian vehicles are covered by AL629, including GM, Ford, Mazda, Toyota, Lexus, Scion, Suzuki, Peugeot, Citroen, Fiat, Abarth, Lancia, Alfa, Honda, Acura, Subaru, Nissan, Infiniti, Chrysler, Renault, Dacia, Land Rover, Jaguar, VW, Audi, Bugatti, Skoda, Seat, Bentley, Volvo and Porsche, etc. For a detailed vehicle coverage list, please contact our sales support engineer.

Features:

• Reads and erases DTCs for ABS, SRS, Engine and Transmission on most 1996 and newer major vehicle models
• Works on most 1996 and newer vehicles (OBDII & CAN) – domestic and import
• Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
• Turns off Check Engine Light (MIL), clears codes and resets monitors
• Reads, stores and plays back live PCM data stream and live sensor data
• Retrieves vehicle information (VIN, CALID and CVN)
• Views freeze frame data
• Troubleshooter code tips guide technicians to the root cause of trouble codes faster
• Graphs data
• TF memory card for data backup and software update
• Multilingual support – English, Spanish, French, etc.
• 2.8’’ LCD with 320X240 resolution
• Internet updatable via USB
• Prints data via PC

Specifications:

• Display | 2.8-inch LCD (320 x 240 dpi)
• Connectivity | USB mini 2.0 OBD II DB15
• Operating Temp. | -10°C to 60°C (14°F to 140°F)
• Storage Temp. | -20°C to 70°C (-4°F to 158°F)
• External Power | 8.0 to 18.0 V power provided via vehicle battery
• Dimensions (LxWxH) | 182.8 mm (7.2”) x 90.9 mm (3.6”) x 33.2 mm (1.3”)
• Net Weight | 247 g (0.544 lb.)
