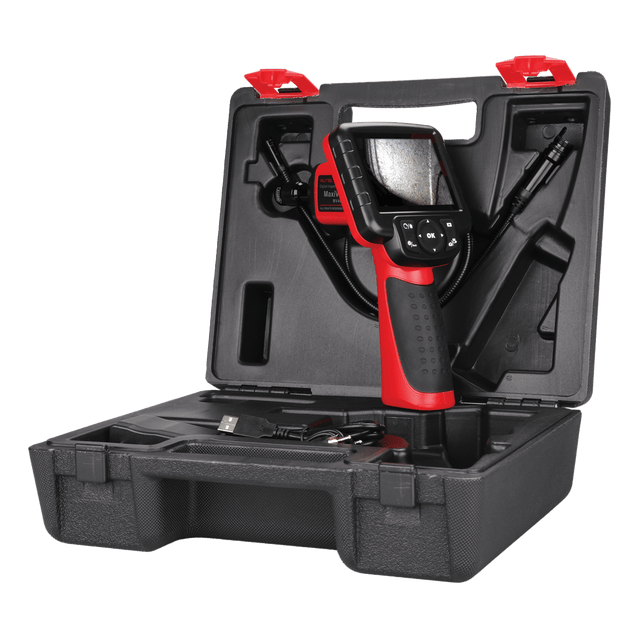

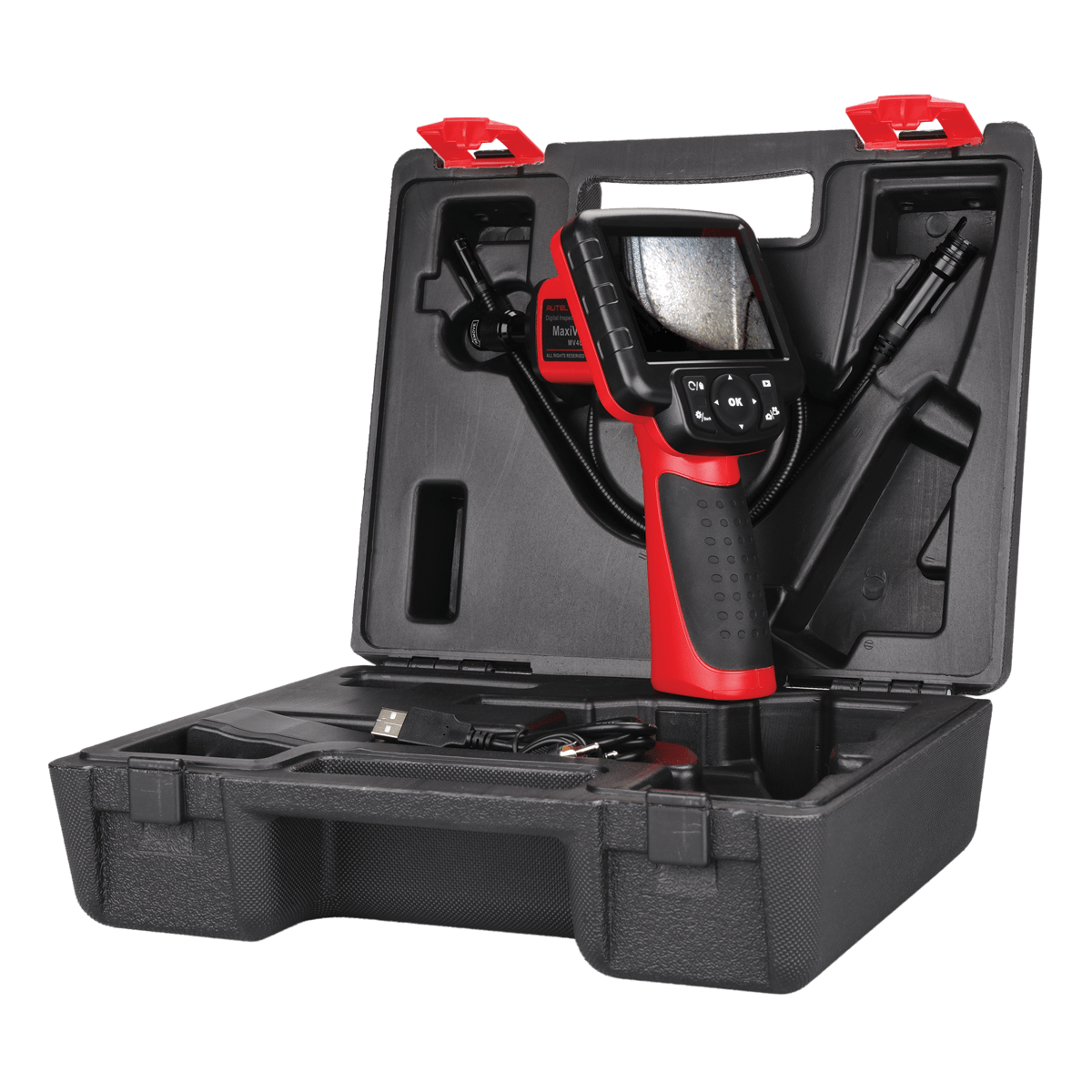

MAXIVIDEO MV400-55 – DIGITAL INSPECTION VIDEOSCOPE
The MV400 digital videoscope is a 3.5” color LCD screen with a 40-inch long shaft with a 5.5mm imager head and LED to record digital still images and MPEG2 or MPEG1 videos. The scope is lightweight, and the semi-rigid shaft is watertight. The MV400 includes an easy-to-use, multi-language interface. The 3.5” high resolution full color LCD (320×240) with Oil and scratch resistant tempered glass lens. The MV400 Built-in rechargeable Li-ion battery with up to 3-4 hours of continuous use. The tool features a Wide camera angle for images with 640×480 resolution, On-screen horizontal/vertical reverse and 5x digital zoom for increased viewing. The narrow probe diameter available in either 8.5mm (0.33″) or 5.5 mm (0.22″) and fits most spark plug holes. A 1-year limited warranty is included.
- 3.5" Color Display with 5.5mm Imager Head
- Record/Playback High Resolution Images & Videos
- Images 640x480, Videos 320x240
- Bright LED Light for Inspecting Confined Areas
- FREE Lifetime Software (lifetime of tool) & 1Yr Warranty
- Includes Magnet, Mirror & Hook Attachments
- 5x Digital Zoom/View As Close As 1"
- 1m (3.28-Ft) Imager Head & Cable Reach
- Waterproof Head & Cable up to 3m (10-Ft)
- On-Screen Horizontal/ Vertical Reverse
- Optimal Viewing Distance: 0.95-30cm/ 3/8-12"
- Upload Files to PC via Mini USB Cable
- Save Files with Micro SD Card (32G max. not included)
- Built-In, Rechargeable Lithium-ion Battery
Recommended Use | Indoor |
Optimal Viewing Distance | 1" to 14" (2.5cm to 35.6cm) with 8.5mm diameter imager head 3/8" to 12" (0.95cm to 30cm) with 5.5mm diameter imager head |
Image Capture | JPG images (640×480) AVI videos (320 x 240) |
Screen Type Display | 3.5" TFT LCD |
Display Resolution | 320 x 240 |
Power Supply | Built-in rechargeable lithium-ion battery pack (3.7V/1640 mAh) |
Tested Battery Life | 3-4 hours of continuous use |
Dimensions | 199 x 100 x 178mm (7.83" x 3.94" x 7.0") |
Recording Medium | Micro SD card (Micro SD card is optional and not included) |
Imager Head | 8.5mm (0.33") is standard and 5.5mm (0.22") is optional |
Waterproof | Imager head and cable to 3m (10‘) |
Additional Ports |
|
Operating Temperature | Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C) |
Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
Video Output | RCA |
TV Out |
|
