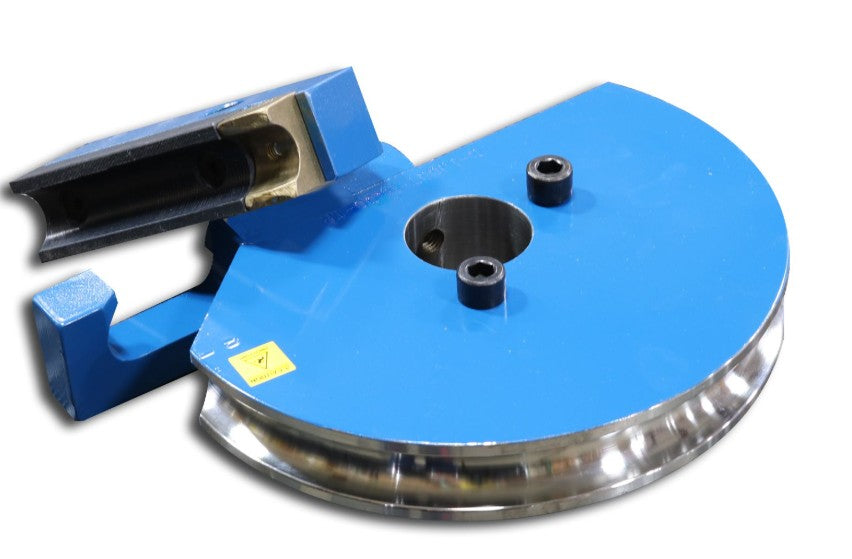

Baileigh Industrial 1003616 1-5/8" Round tube die set 6" CLR(DS-1625T-R600)

1-5/8" Round tube die set with a 6 Inch Center line Radius. Fits on all Baileigh Industrial rotary draw benders that accept drop on tooling (Not RDB-050). Center line radius is based on .083 wall thickness. Accessories included.

Features:

• Designated tube by blue color
• 1018 billet steel forming die
• Replaceable / Consumable counter die inserts for counter die block
• Welded / Bolted open side hook arm, for easy tube insertion and removal
• Nonproprietary spindle bore
• Optional Roller assemblies for special applications
• Optional hardened 4140 billet dies for production heavy wall bending, and production stainless bending
• Metric Sizing available at request

Specifications:

• Country of Manufacture | United States
• Shipping Weight | 55 lbs
• Material OD | 1.625"
• Recommended Min. Wall Thickness | .083"
• Center Line Radius | 6"
