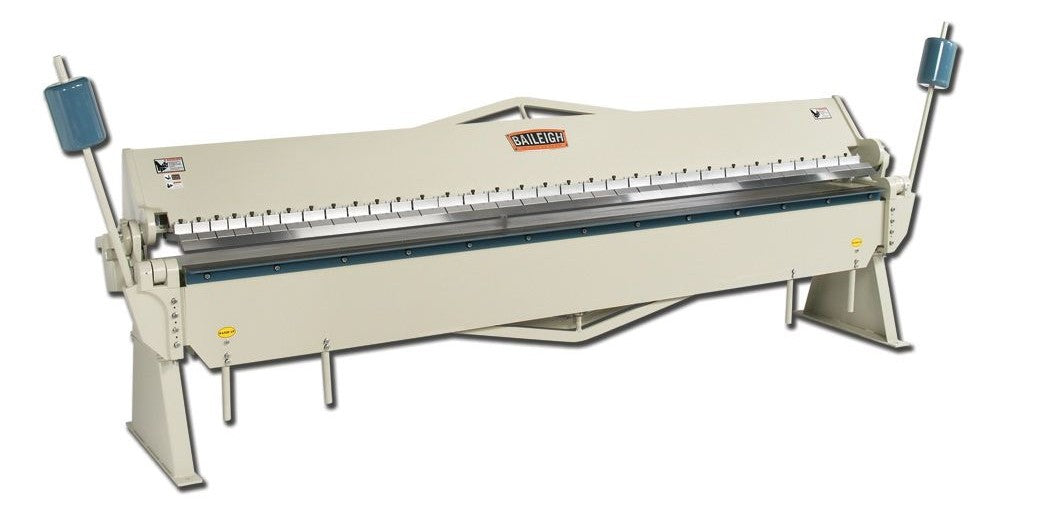

Baileigh Industrial BB-14418 Box and Pan Brake

The BB-14418 box and pan brake from Baileigh Industrial is a great tool for those HVAC shops that need the extra length for making custom duct work. It has an overall bending length of 12’ and can bend 18 gauge mild steel sheet metal at the full length. The BB-14418 will even handle 22 gauge stainless steel sheet metal for those exotic jobs that come along. The BB-14418 is built to the exact same standards as the rest of the Baileigh Industrial sheet metal brakes which allow for years of trouble free use. The fully welded frame on the BB-14418 allows for the big capacity without twisting or misalignment that plagues many of the other sheet metal brakes on the market. This box brake’s welded steel frame allows for a large capacity—without the twisting you’ll get from many competing metal brakes. The BB-14418 will provide years of trouble-free use.

Features:

• 18 gauge mild steel and 22 gauge stainless steel maximum capacity.
• Bends sheet metal across its entire 12-foot (144”) length.
• 135° maximum bend angle.
• Includes 31 interchangeable fingers of varying lengths (6 fingers of 3", 6 of 4", 10 of 5", 9 of 6" ).
• You can make just about any size box or pan imaginable up to a 6” box depth.
• 2 large counterweights help the operator bend at full length and capacity without straining.
• Electro-welded steel construction enables this sheet metal brake to handle its maximum capacity while maintaining accuracy.
• Baileigh covers this sheet metal finger brake with a 1-year parts warranty.
• Comes with lifetime technical support by phone. You can count on our team of knowledgeable reps for troubleshooting or tips on how to use the BB-14418.
• We typically keep both the metal brake and replacement parts in stock for fast deliveries.
• Recommended for: HVAC shops that need extra length for making custom ductwork.

Specifications:

• Item Number | BB-14418
• Min Reverse Bend | .625"
• Thickness (SS) | 18 ga. (22 ga.)
• Box Depth | 6"
• Beam Adjustment | 1"
• Bend Angle | 0 – 135°
• Finger Sizes | 3" – 4" – 5" – 6"
• Power | Manual
• Shipping Weight | 5,390 lbs.
• Length | 144”
• Shipping Dimensions | 168" x 34" x 48"

* specifications subject to change without notice.
