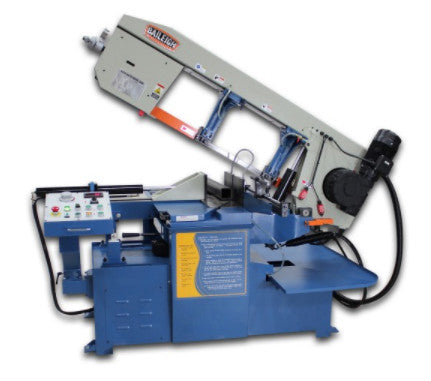

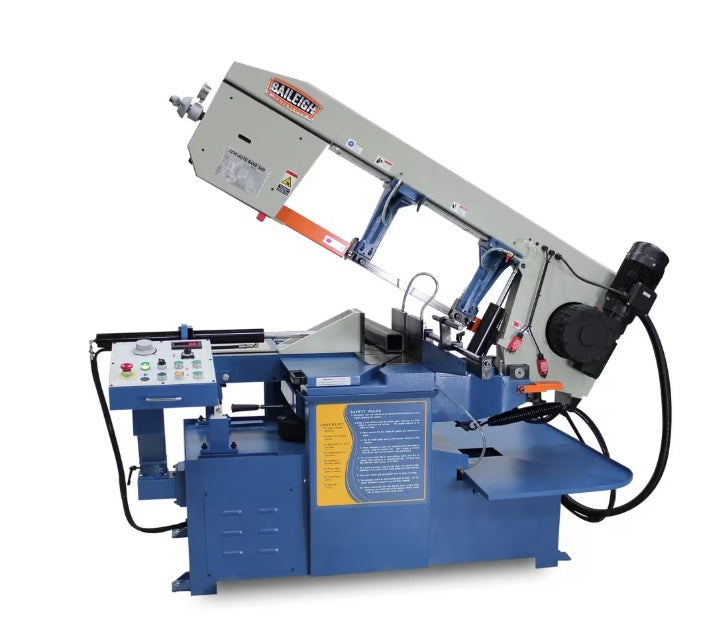

Baileigh BS-20SA-DM Band Saw

We built this semi-automatic band saw with a cast iron bow and steel frame to offer decades of reliable quality. Its hydraulic system will speed up production and save you effort.

Manufactured in Taiwan

Features:

• Maximum capacity of 13” OD round at 90°.
• Accepts a 1.25” blade (included). The large size makes faster and more accurate cuts.
• Dual-mitering band saw can move 45° left and 60° right. Just push or pull the head to the right angle.
• Inverter drive allows for infinite blade speed adjustments from 69 to 306 fpm.
• You can fine-tune the speed for materials like mild steel, bronze, or aluminum. Digital readout (DRO) allows you to reproduce settings with ease.
• Available in 220-volt or 440-volttriple-phase models (440-volt is a special order).
• Cast iron bow resists vibrations and helps to ensure a high-quality cut.
• Hydraulic vise, down feed, and bow return make production runs more efficient. Set down the material, press start, and the saw will automatically handle the rest.
• You can adjust the hydraulic descent pressure (depending on the material) to achieve faster cut times and longer blade life.
• Cutting head return position can be altered for faster cycle times between cuts on smaller pieces.
• Comes with heavy-duty infeed and outfeed tables for easier material handling.
• Our patented blade tension device lets you easily set the right tension. Adjust until the black arrow lines up with the green liquid-filled gauge.
• Electro-welded steel frame gives the machine structural strength to maintain accuracy.
• Compact floor plan conserves space in your shop.
• High-pressure flood coolant system washes away metal chips and helps blades last longer.

Specifications:

• Item Number | BS-20SA-DM
• Return | Hydraulic
• Miter Adjustment | Dual Miter Swivel Head
• Miter Angle | 0 – 60°, 45°L
• Motor | 3 hp
• Capacity Rectangle 90° | 13" x 18" / 13" x 10.6" / 12.4" x 7.7"
• Capacity Round 90°/ 45° / 60° | 13" x 12" x 8.5"
• Capacity Square 90°/ 45° / 60° | 13" x 12" x 8.5"
• Blade Guide | Carbide / Roller
• Blade Speed (fpm) | 60 - 306 Inverter Driven
• Descent Control | Pressure Assist Hydraulic
• Drive | Inverter Direct
• Power | 220V or 440V 3-Phase (440V special order)
• Shipping Weight | 2,156 lbs.
• Shipping Dimensions | 88.6" x 35.5" x 61.4"

* specifications subject to change without notice.
