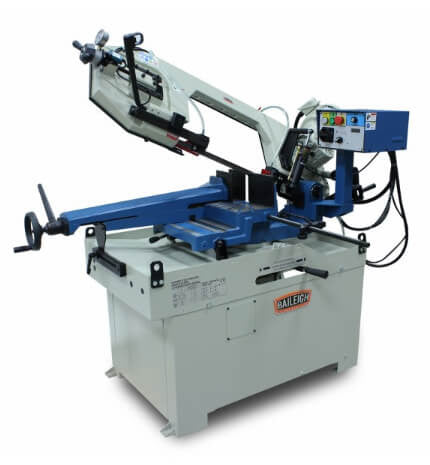

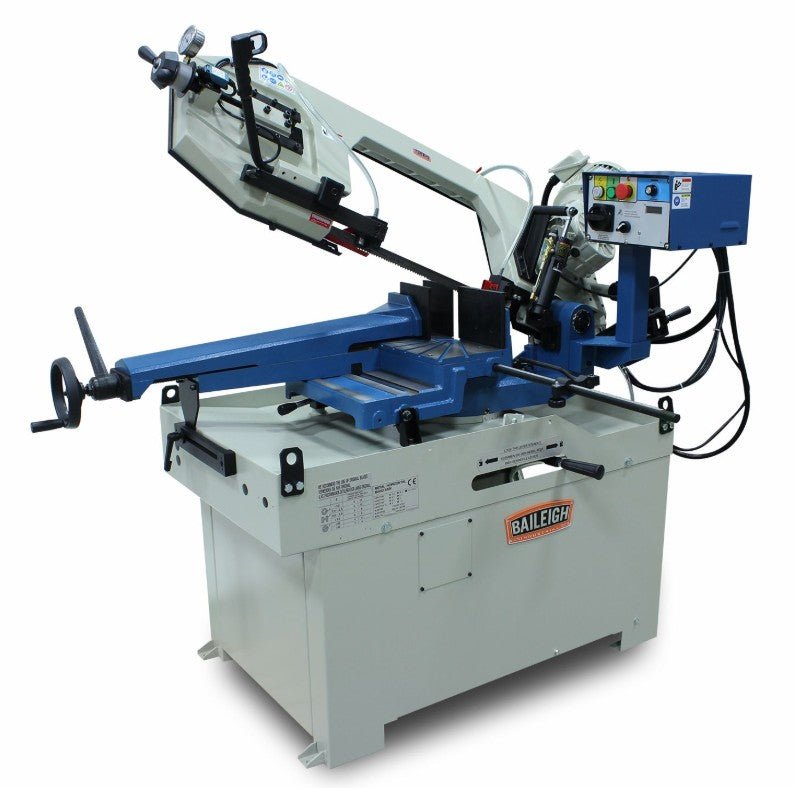

Baileigh Industrial BS-350M Dual Miter Band Saw

Need to cut at multiple angles in both directions? This dual-mitering band saw has a cast iron head and bow that can swivel 60° right and 45° left.

MADE IN TAIWAN

Features:

• 10.5” round capacity at 90°.
• Runs on 220-volt single-phase power. You can use the dual miter band saw just about anywhere.
• 2 hp motor, driven by an AC inverter, makes the machine reliable.
• Direct-drive gearbox saves you the trouble of adjusting pulleys or replacing broken belts!
• Cast iron head and bow, machined to exacting tolerances, reduce vibration and deliver the straightest, highest quality cuts on the market.
• 1” blade width.
• Variable speed control, from 66- 280 fpm, lets you select the speed to suit your material and application.
• Ball bearing blade guides help you get the blade as close to the material as possible to make accurate cuts, ensuring long blade life.
• Patented blade tension device, a liquid-filled gauge, makes it easy to check and adjust the tension.
• Comes standard with a flood coolant system to wash away metal chips and help blades last longer.

Modes of operation:

• Choose between 2 modes of operation, manual or hydraulic descent, depending on your preference and project.
• Manual descent mode:
• For small production runs.
• Perfect for small or medium sized fabricators’ needs.
• Turn on the machine via a trigger switch in the descent handle.
• Manually guide the band saw blade through the material.
• Hydraulic descent mode:
• For larger production runs.
• Increases blade life and reduces operator fatigue.
• Downfeed adjustment for feed pressure.

Specifications:

• Motor | 2 hp
• Return | Manual
• Miter Adjustment | Dual Swivel Head
• Miter Angle | 0 – 60°, 45°L
• Motor High Torque | 1.5Kw (AC)
• Capacity Round | 90 x 45 x 60 x 45L 10.63" x 9.45" x 6.3" x 8.28"
• Capacity Rectangular | 90 X 45 X 45L 13.77" x 8.66" x 9.45" x 6.3" 7.3" x 4.33"
• Capacity Square | 90 x 45 x 60 x 45L 10.24" x 8.66" x 5.9" x 7.09"
• Table Height | 35"
• Blade Guide | Carbide x Roller
• Blade Speed (fpm) | 66–280 Variable
• Descent Control | Hydraulic
• Drive | Gear
• Power | 220V / 1-phase
• Shipping Weight | 865 lbs
• Shipping Dimensions | 69"x44"x49"

*Specifications subject to change without notice.
