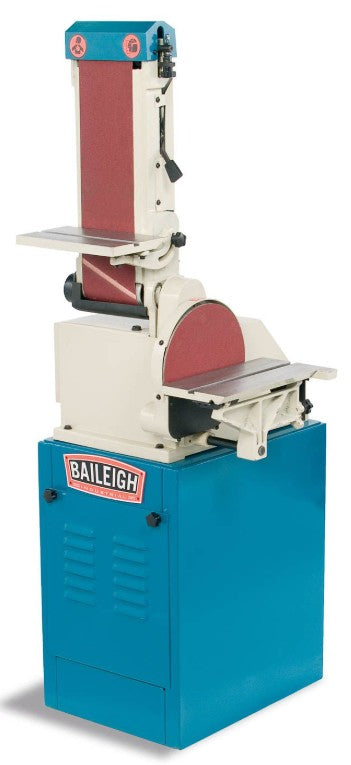

Baileigh Industrial DBG-106 Disc and Belt Grinder

Save a lot of floor space in your shop with this 2-in-1 combination of an abrasive disc grinder and an abrasive belt grinder. Designed and built to very high standards, this machine will serve your shop for years to come. Recommended for smoothing over burrs on metal, chamfering edges for welding, and cleaning up castings, among other uses.

Features:

• Powerful 1.5 hp motor requires 110-volt single-phase power and will work in almost any fabrication shop setting.
• The abrasive disc grinder rotates at 2100 rpm and abrasive belt grinder rotates at 1653 fpm.
• Large product support tables can be angled up to 45° for mitering edges.
• Vacuum port for hooking up any standard shop vacuum to assist with dust collection.
• Belt grinder includes tension control and tracking adjustments as standard features, not upgrades.
• Baileigh backs this unit with a 1-year parts warranty and lifetime technical support.
• We typically keep disc and belt grinders in stock for fast shipments.

Specifications:

• Item Number | DBG-106
• Working Table Size | 6" x 10.5" (Belt), 7.5" x 13" (Disc)
• Motor Hp | 1.5
• Table Angle Adj | 45°
• Chamfer Angle | 15°
• Belt Size | 48”l x 6”w
• Belt Speed (ft./min.) | 1,653 fpm
• Max. Chamfer | 15 .177"
• Disc Diameter | 9.84"
• Disc Speed | 2,100 rpm
• Power | 110V
• Shipping Weight | 320 lbs
• Shipping Dimensions | 48"x45"x50"

* specifications subject to change without notice.
