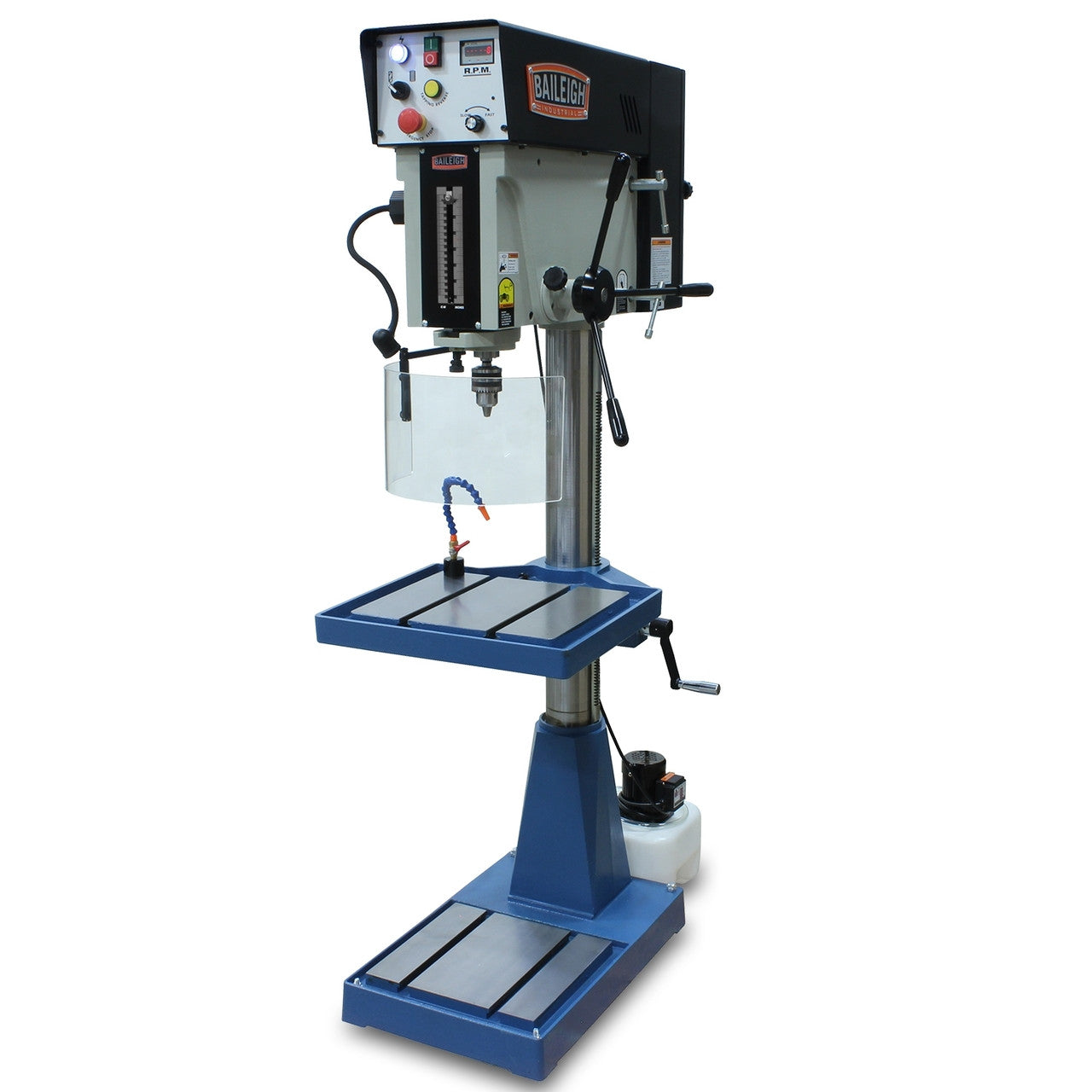

Baileigh Industrial DP-1200VS Variable Speed Drill Press

Built to last for years, the DP-1200VS floor drill press is an economical option for any shop. With a 22” swing, this variable-speed drill press will prove an ideal investment for any machinist or fabricator.

MADE IN TAIWAN

Features:

• 2 hp motor runs on just 220 volts of single-phase power.
• Tackles a maximum drilling capacity of 1-1/16” mild steel.
• Heavy duty spindle transfers power to the #3 Morse taper tooling .
• Speed potentiometer dial controls powerful inverter-driven head.
• Variable drilling speed, ranging from 10 to 2250 rpm, lets you choose the right setting to suit your application.
• Digital readout displays actual spindle rpm, ensuring precise results time after time.
• Features an auto-reversing tap function with up to .1/2” capacity.
• Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.
• Base and 16-3/4” x 19” table are made of a heavy iron casting to increase rigidity.
• Very large .625" T-slots let a vise or fixture securely hold your material.
• Movable coolant system, with magnetic fixture, sprays out where you need it to extend drill bit and tap lifespan.

Specifications*:

• Item Number | DP-1200VS
• Swing | 20.8"
• Diameter of Column | 4"
• Distance Between Spindle Nose and Base | 1-1/4" Min. / 23-1/2" Max.
• Base Size | 25-3/4" x 16-1/2"
• Table Size | 16-3/4" x 19"
• Quill Diameter | 3"
• Stroke | 6"
• Spindle Nose to Table | 36.41"
• Spindle Nose to Base | 44-1/2"
• Spindle Speed | 10-2,250 RPM
• Spindle Taper | MT3
• Table Slot | .625"
• Tapping Capacity | 1/2"
• Main Motor | 2 hp
• Drill Capacity Steel | 1-1/16"
• Power | 220V / 1-phase
• Shipping Weight | 660 lbs
• Drill Capacity | 1.25"
• Spindle Travel | 5.9"
• Column Diameter | 4.52"
• Shipping Dimensions | 35" x 22" x 77"

*Specifications subject to change without notice.
