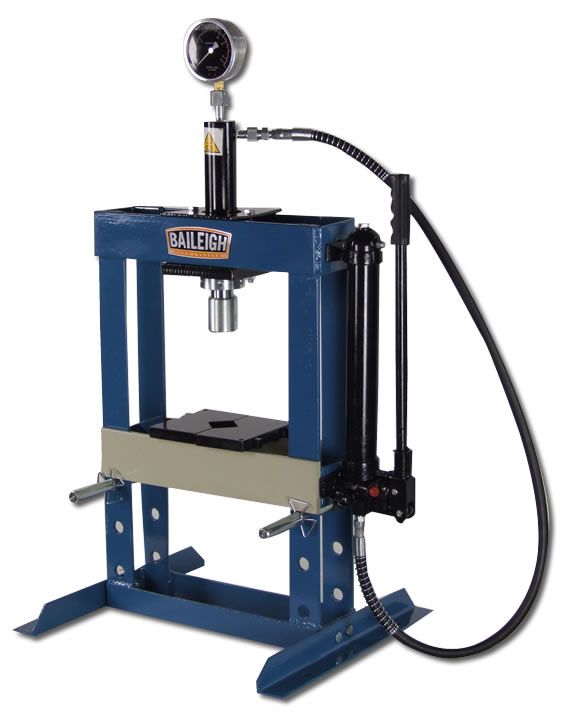

Baileigh Industrial HSP-10H 10 Ton Hydraulic Shop Press 7" Stroke

Don’t let the small size of Baileigh Industrials HSP-10H bench top press fool you. This 10 hydraulic press can live up whatever the shop can throw at it. The HSP-10 is a manually powered shop press is built to last, with its fully welded frame and its industrial grade hydraulics. The HSP-10H has a 13-1/4” work opening and a large 7-3/4” stroke to accommodate a lot of different applications. The HSP-10 also comes standard with its own set of vee blocks and removable ram cap that will allow the operator to use a wide variety of tooling. Like all Baileigh Industrial shop presses the HSP-10 has a movable cylinder that moves left or right within the frame of the press.

Specifications:

• Piston Head Diameter | 2"
• Movable Cylinder | Yes
• Working Width | 13.5"
• Maximum Capacity | 10 tons
• Cylinder Stroke | 7"
• Cylinder Diameter | 5.11"
• Distance From Table To Ram Min. | 4.33" - Max. 14.33"
• Power | Manual
• Shipping Weight | 200 lbs.
• Shipping Dimensions | 44" x 60" x 11"

* Specifications subject to change without notice.
