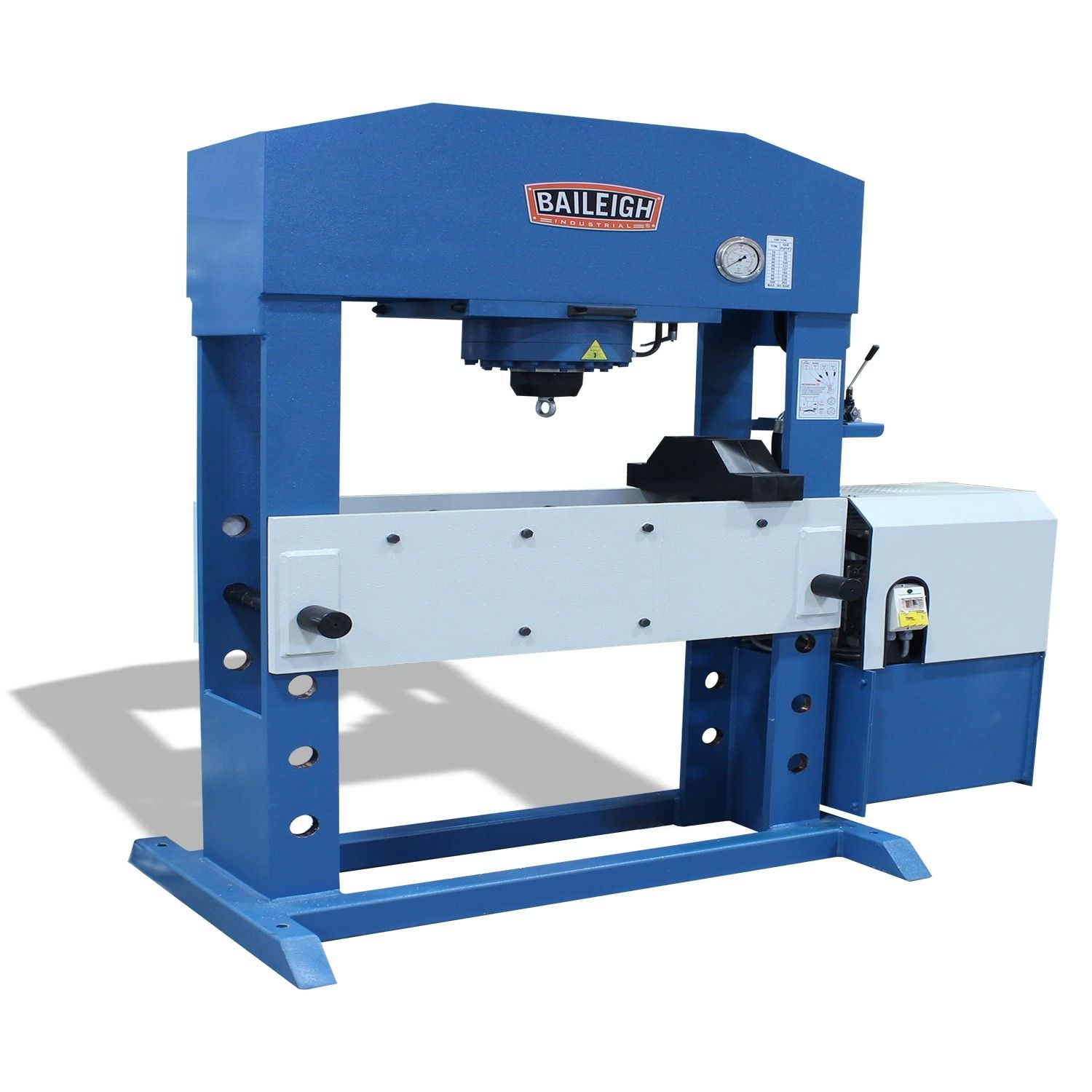

Baileigh HSP-110M-1500HD Hydraulic Workshop Press

With a welded cast-steel framework, this hydraulic press is a must-have for any engineering workshop, repair firm, or technical training institutions. Recommended for general assembly, straightening work, testing workpieces, and pressing bearings in and out.

Features:

• 110-ton maximum capacity.
• 59” working width.
• 8”-diameter cylinder with 13.75” stroke.
• 10 hp motor runs on 220-volt 3-phase power.
• 2 speeds and pressure regulator let you adjust to suit a given project.
• Cylinder moves left and right within the frame for off-center parts.
• Effortlessly adjust the height of the heavy work table using the hydraulic cylinder and lifting chains.
• 4.09” chrome piston with automatic return saves time after you’re finished applying pressure.
• Typically kept in stock for fast shipping.
• Delivery in accordance with CE standards.

Specifications:

• Item Number | HSP-110M-1500-HD-1.0
• Return Speed | .23" / sec.
• Maximum Pressure | 4375 psi
• Motor | 10 hp
• Piston Head Diameter | 4.09"
• Pump Speed | 3.9 gal/min.
• Oil Capacity | 35.65 gal
• Working Speed | .15" / sec.
• Working Width | 59"
• Maximum Capacity | 110 tons
• Cylinder Stroke | 13.75"
• Cylinder Movable | Yes
• Cylinder Diameter | 8"
• Power | 220V / 3-phase
• Shipping Weight | 4240 lbs
• Shipping Dimensions | 96"x48"x97" & 48"x45"x53"

* specifications subject to change without notice.
