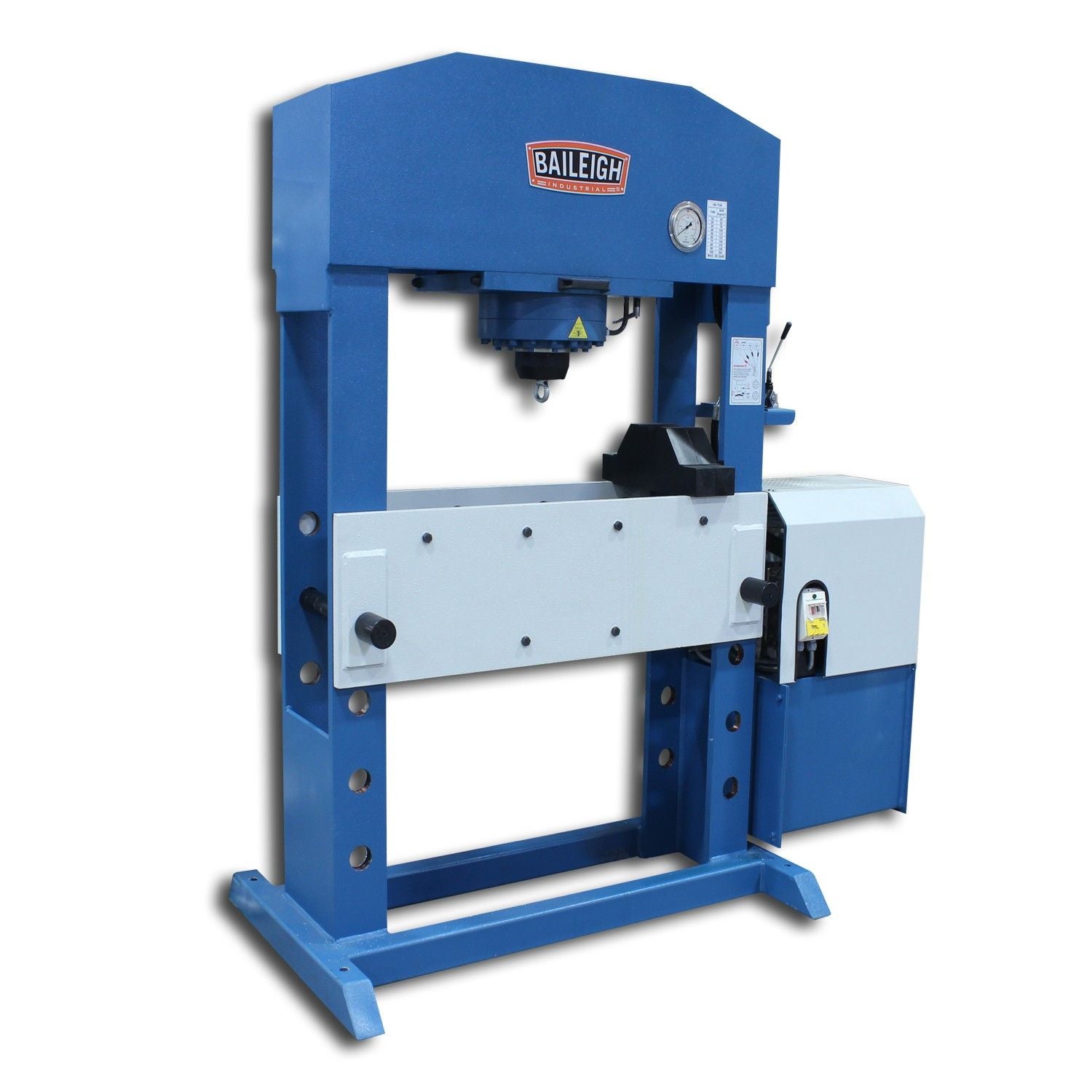

Baileigh HSP-110M-HD Hydraulic H-Frame Press

With a 1” plate steel framework and plenty of time-saving features, this hydraulic press sets the standard by which all other models should be measured. Recommended for general assembly, straightening work, and pressing bearings in and out of their housings.

Features:

• 110-ton capacity.
• 42.12” working width.
• 8.66” diameter cylinder with 11.8” stroke.
• Runs on 220-volt 3-phase power.
• 7.5 hp motor can push all 110 tons of force without strain.
• cylinder moves left or right within the framework so you can apply force for off-center projects.
• 2-speed down movement (rapid or slow descent) with pressure regulator.
• 6.3” chrome piston automatically returns to top position after the job is done.
• Welded steel construction maintains accuracy, holding up under the machine’s full force without flexing.

Specifications:

• Item Number | HSP-110M-HD-1.0
• SKU | 1021228
• Country of Manufacture | Turkey
• Return Speed | .393" / sec.
• Maximum Pressure | 3858 psi
• Motor | 7.5 hp
• Piston Head Diameter | 4.72"
• Pump Speed | 1.5 / 5.17 gal/min.
• Oil Capacity | 7.92 gal
• Working Speed | .106" / sec.
• Working Width | 36.22"
• System Oil Capacity | 3.17 gal
• Lowering Speed | .362" / sec.
• Maximum Capacity | 110 tons
• Cylinder Stroke | 15.75"
• Cylinder Movable | Yes
• Cylinder Diameter | 10"
• Rpm | 3000
• Power | 220V / 3-phase
• Shipping Weight | 3400 lbs
• Shipping Dimensions | 98"x48"x95"

* specifications subject to change without notice.
