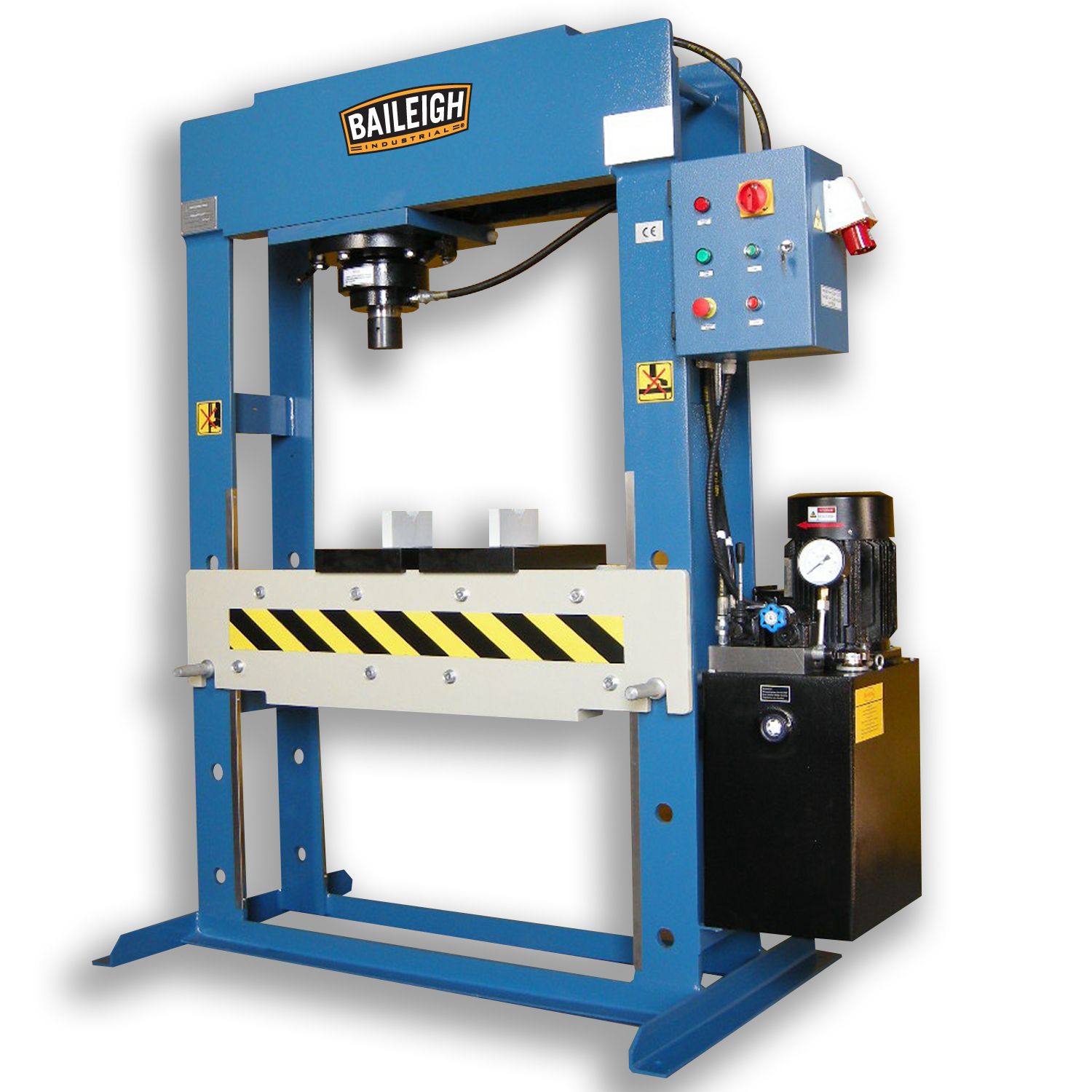

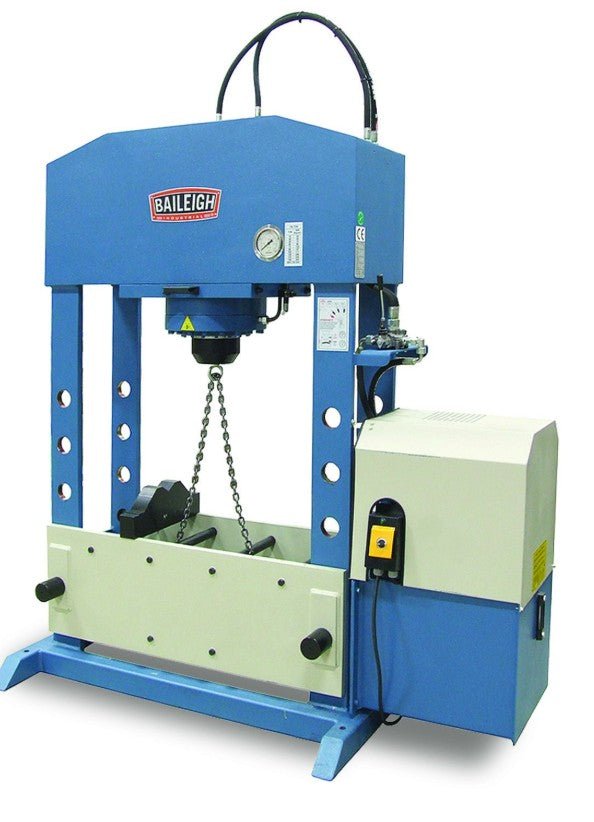

Baileigh HSP-176M-HD Hydraulic Work Shop Press

Need a lot of tonnage? Our HSP-176M hydraulic press provides 165 tons of force. Its fully-welded .375” steel plate framework can handle maximum capacity pressure every day. Includes set of V-blocks.

Features:

• 43.3” working width.
• 12.75" diameter cylinder with 11.8” stroke.
• Industrial-grade hydraulic system.
• 4 hp motor runs on 220-volt 3-phase power.
• 2 hydraulic speeds—rapid advance and slower approach—let you choose the right speed for your application.
• You can operate the ram in automatic (motorized) or manual mode (hand pump) for even more control.
• Cylinder can move left or right within the framework, perfect for off-center parts and applications.
• 5.90” chrome piston automatically returns to the top after you’re done pressing.
• Worktable includes 2 sets of supports made from 3” round stock to keep the press as stable as possible.
• Motorized table height adjustment: lifting chains on attach to the ram, so the hydraulic system does all the work. No strain on your back!

Specifications:

• Item Number | HSP-176M-HD
• SKU | 1012428
• Country of Manufacture | Turkey
• Return Speed | .5" / sec.
• Maximum Pressure | 3814 psi
• Motor | 4 hp
• Piston Head Diameter | 5.90"
• Pump Speed | 1.92 / 7.50 gal/min.
• Oil Capacity | 7.92 gal
• Working Speed | .090" / sec.
• Working Width | 43.3"
• Lowering Speed | .350" / sec.
• Maximum Capacity | 165 tons
• Cylinder Stroke | 11.8"
• Cylinder Movable | Yes
• Cylinder Diameter | 12.75"
• Rpm | 3000
• Power | 220V / 3-phase
• Shipping Weight | 3465 lbs
• Shipping Dimensions | 96"x48"x99"

* specifications subject to change without notice.
