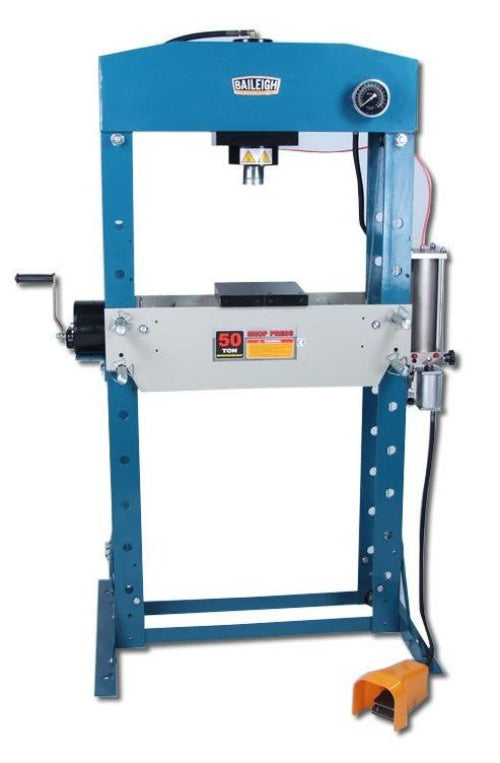

Baileigh HSP-50A Air/Hand Operated H-Frame Press

The most popular kind of H-frame press in fabrication and machine shops is the 50-ton upright. You won’t find a higher quality 50-ton pneumatic shop press than Baileigh’s Air/Hand Operated H-Frame Press HSP-50A.

Features:

• 28.5” working width.
• Large 6” diameter cylinder with 7.8” stroke.
• Industrial-grade hydraulics ensure years of smooth, useful operation.
• Foot pedal allows for simple and convenient machine control.
• Manual hand pump on the side of the HSP-50A offers more control for delicate applications.
• Winch and pulley system lets you lift and lower the working table to save time (and back strain!) when you have to relocate the table.
• Fully-welded steel main frame for maximum rigidity, so you can use all 50 tons of force regularly without the machine buckling under the pressure.
• Comes standard with a set of V-blocks.
• Covered by a 1-year parts warranty and lifetime technical support by phone.

Specifications:

• Piston Head Diameter | 2.75"
• Movable Cylinder | Yes
• Working Width | 28.5"
• Maximum Capacity | 50 tons
• Cylinder Stroke | 7.8"
• Cylinder Diameter | 6"
• Distance From Table To Ram | Min. 2.72" - Max. 41.26"
• Power | Pneumatic / Manual
• Shipping Weight | 770 lbs
• Shipping Dimensions | 83"x39"x16"

*Specifications subject to change without notice.
