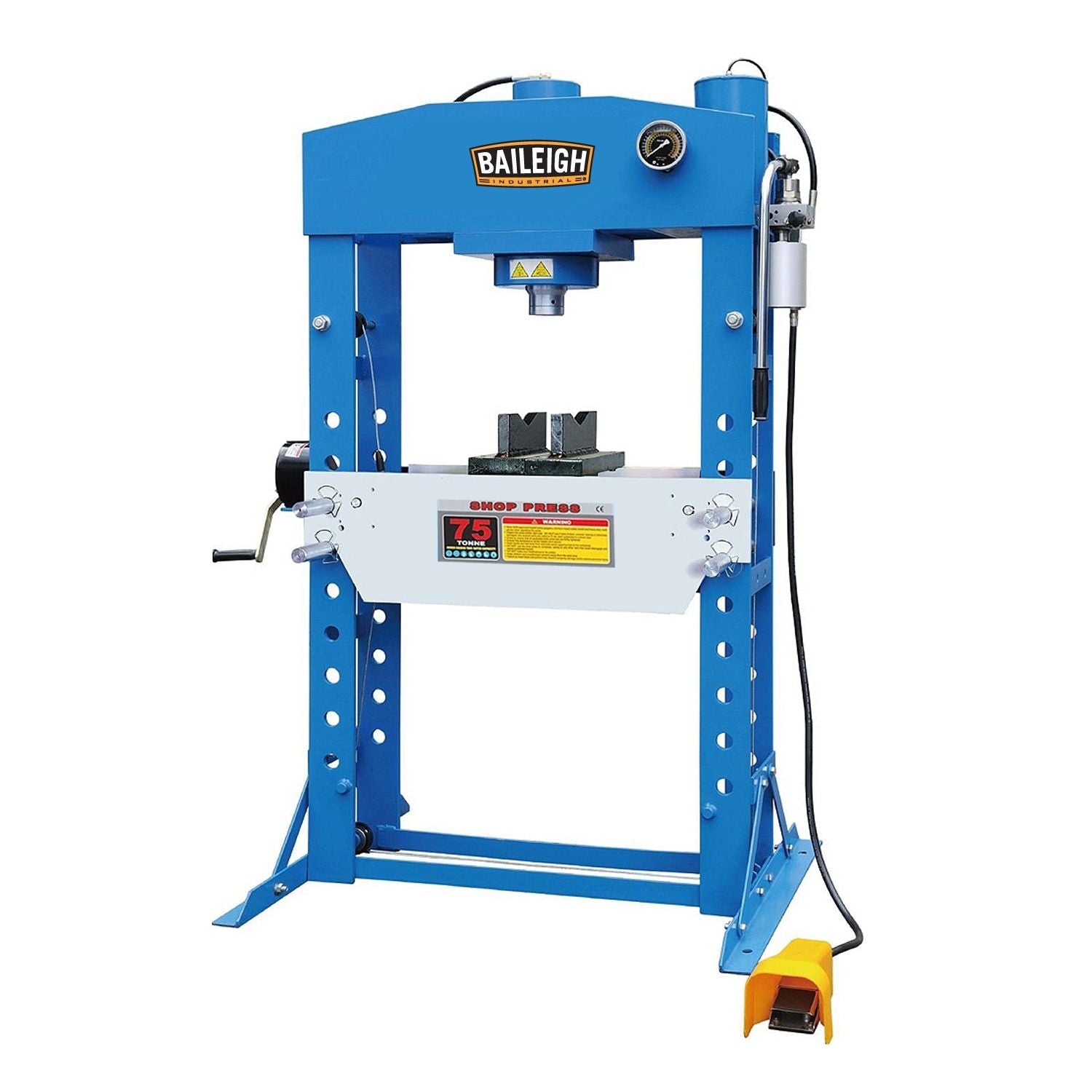

Baileigh Industrial HSP-75A 75 Ton Air/Hydraulic Shop Press

This H-frame press maintains accuracy with fully-welded steel main frame. Go ahead and use its full 75 tons of force. This air-powered shop press won’t flex or buckle on you!

Features:

• 31.5” working width.
• Large 9” diameter cylinder with a 9.8” stroke.
• Requires a 90 to 115 psi compressor.
• Industrial-grade hydraulics help the machine last and run smoothly for many years of productivity.
• Integrated foot pedal makes this H-frame press easy to control.
• If you’d like more delicate control, you can choose the manual hand pump located on the side of the HSP-75A.
• Winch and pulley system will save time when lifting and lowering the working table. (It also saves strain on your back muscles.)
• Comes standard with a V-block set.
• You can count on Baileigh for a 1-year parts warranty as well as lifetime technical support by phone.

Specifications:

• Piston Head Diameter | 3"
• Movable Cylinder | Yes
• Working Width | 31.5"
• Maximum Capacity | 75 tons
• Cylinder Stroke | 9.8"
• Cylinder Diameter | 9"
• Distance From Table To Ram | Min. 6.69" - Max. 34.80"
• Power | Pneumatic / Manual
• Shipping Weight | 1110 lbs
• Shipping Dimensions | 83"x44"x16"

*Specifications subject to change without notice.
