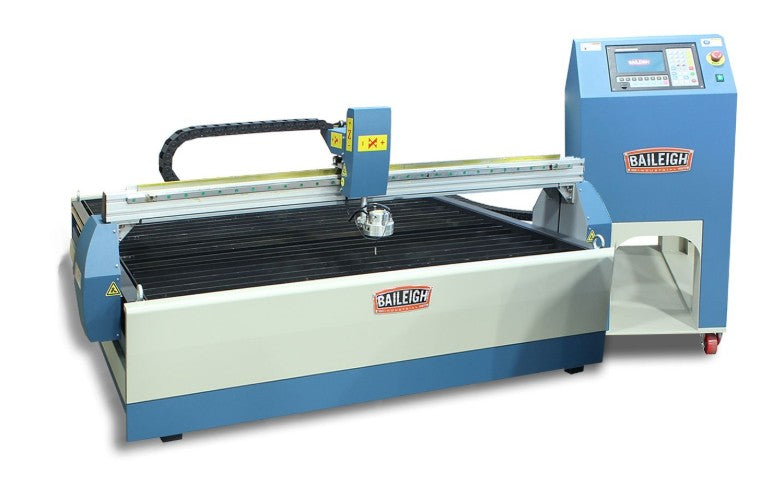

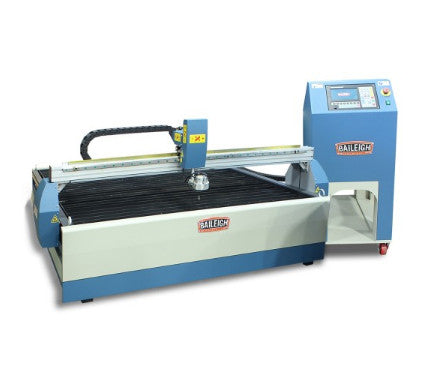

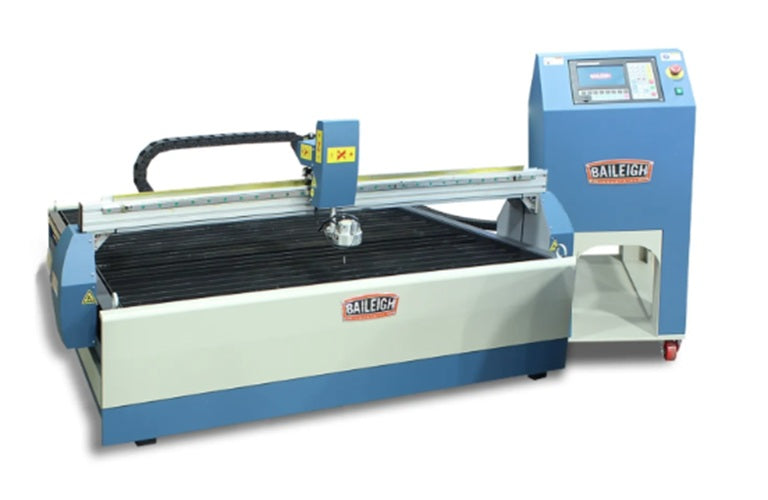

Baileigh PT-44AH-W CNC Plasma Table

With variable height control, the PT-44AHC makes perfect cuts in uneven material. This CNC plasma table comes assembled with a heavy steel frame and includes BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive.

Features:

• 59" x 59" working area.
• Runs on 220-volt single-phase power, so it will work at most sites in North America.
• Customers love the design software package (more details below), which takes just a few minutes to learn.
• You can control the X, Y, and Z axes using the integrated panel on the podium.
• Automatic height control is integrated into the operator’s panel, eliminating secondary systems found on many other tables.
• Operators podium provides space for plasma power unit even while cutting.
• If the material is uneven or puckers under the heat of the torch, the variable height control will rise or lower in real time while cutting.
• X, Y, and Z axes are controlled by quality stepper motors, allowing for fast and fluid movement.
• Fully enclosed wires and electronics prevent snags and tangles.
• Made of heavy-gauge boxed steel, this CNC plasma cutting machine can easily support large, thick industrial-sized sheets of metal.
• Steel frame will remain straight and accurate over the years—unlike competing plasma tables with aluminum frames, which will warp from heat.
• Ground, hardened, and polished square rails combined with linear orbital bearings add impressive strength to the machine.
• Arrives pre-built at your shop, so you don’t have to spend hours putting it together and risk misalignment.
• Integrated water table helps control smoke and dust created while cutting to help keep your shop clean.

Specifications:

• Item Number | PT-44AH-W
• Table Style | Water
• Working Table Size | 59" x 59"
• Overall Size | 82.75" x 90” x 40”
• Controller Type | Touch Pad w/7” LCD Screen
• Travel Speed | 315 Inches Per Minute
• Table Dimensions | 67" x 64"
• Z Axis Travel | 3.4” (86mm)
• Table Load Capacity | 1" Mild Steel
• Capacity | Depends on Plasma System Chosen
• Table Height | 19.6” (500mm)
• Drive | Stepper Motor
• Power | 220V / 1-phase
• Shipping Weight | 2293 lbs
• Software | BobCAD-Cam Express software included
• Things to Know Before Purchase | Does NOT come with Plasma System
• Shipping Dimensions | 90-1/2" x 90-1/2" x 52"

*Specifications subject to change without notice.
