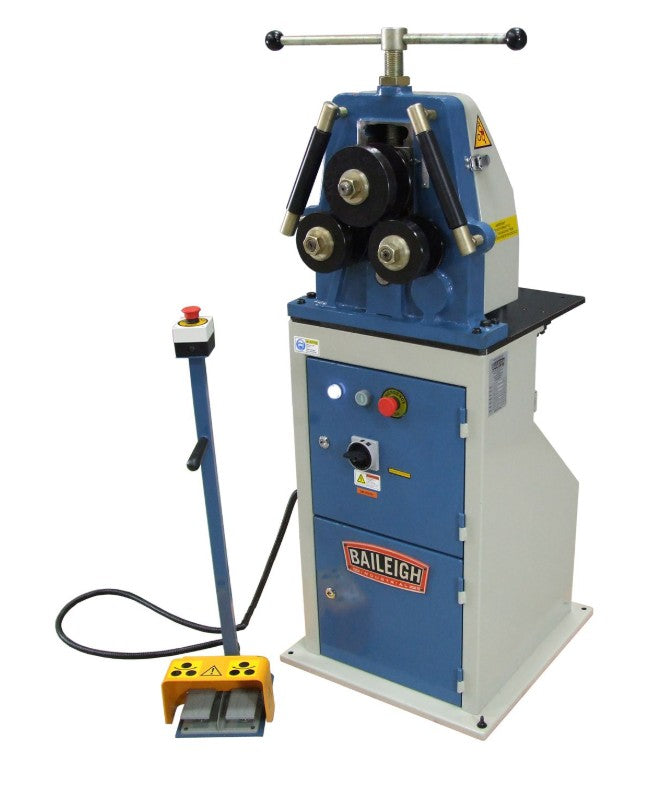

Baileigh Industrial R-M10E Manual Roll Bender

Baileigh introduced the R-M10E as an answer to our customers wants. This electric ring roller has proved to be a life saver for those fabrication shops that need s little more production that the R-M10 can provide.

Features:

• 220 Volt 3 phase
• Maximum capacity of 1.25” (.078” wall) mild steel round tubing and 1” schedule 40 pipe capacity.
• Open-face design allows you to roll full circles.
• Manual drive includes reduction gearbox to cut down on physical effort.
• Comes equipped with various segment rolls for different types of flat bar, angle iron, and square tubing.
• Hardened rolling shafts turn on bronze bushings, ensuring that the machine will last for years and wear well.
• Cast steel head, machined to exacting tolerances, maintains accuracy when bending at full capacity.
• Machine base opens to a handy storage cabinet.
• Many optional sizes of tooling are available for round tube and pipe, among other profiles.
• Backed by Baileigh’s 1-year parts warranty and lifetime technical support.

Specifications:

• Motor | 2 hp
• Roll Adjustment | Manual
• Pipe Capacity Size | 1" (sch. 40) / Min. Dia.: 28"
• Round Tube Capacity Size | 1.25" (.078") / Min. Dia.: 31.5"
• Square Tube Capacity Size | 1.25" (.078") / Min. Dia.: 35"
• Solid Round Capacity Size | .875" / Min. Dia. 20"
• Flat Bar Easy Way | 1.96" (.39") / Min. Dia.: 15.75"
• Flat Bar Hard Way | 1.18" (.39") / Min. Dia.: 19.685"
• Angle Iron Capacity Size | 1.25" (.157") / Min. Dia.: 30"
• Shaft Diameter | 1.181"
• Shaft Center Distance | 6.7"
• Lower Roll Dia. | 4.65"
• Pinch | Single
• Power | 220 Volt Three Phase
• Shipping Weight | 635 lbs
• Material Type | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
• Shipping Dimensions | 38"x32"x53"

*Specifications subject to change without notice.

*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application detail.
