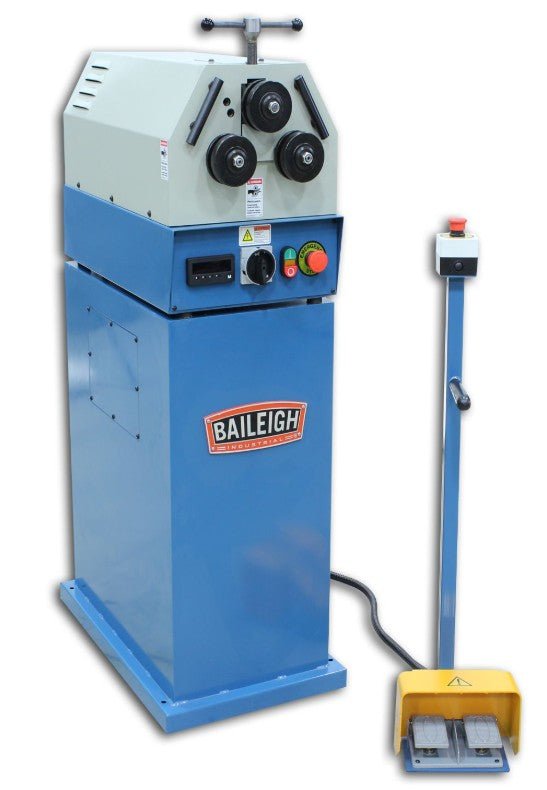

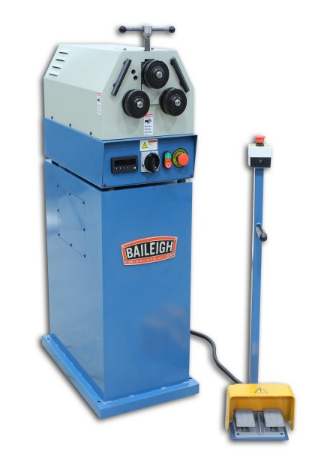

Baileigh Industrial R-M20-220 Roll Bender

We designed the R-M20 ring roller with tight, compact roll formation to shape small diameter material and roll coils without trouble.

*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.

Features:

• Runs on 220-volt 3-phase power.
• Maximum capacity of .5" schedule 40 pipe and 1" round tube.
• Adjustable lateral guides let you bend to just about any coil width imaginable.
• Convenient foot pedals control forward and reverse roll direction.
• Easy-to-read digital display shows top roll position, making bend repeatability a cinch.
• Emergency stop protects your safety, as well as the machine.
• Rugged steel frame plus hardened, ground, and polished steel shafts ensure accuracy and years of productivity.
• Machine head separates from included stand to make the machine portable and easy to store—an advantage for working in small shops or traveling to work on-site.
• Covered by a 1-year parts warranty and lifetime technical support from Baileigh’s experienced reps.

Specifications:

• Driven Rolls | 2
• Roll Adjustment | Manual
• Pipe Capacity Size | .5” (sch.40) / Min. Dia.: 14”
• Round Tube Capacity Size | 1" (.0625") Min. Dia.: 16"
• Square Tube Capacity | .75" (.0625") Min. Dia.: 12"
• Solid Round Capacity Size | .5" Min. Dia.: 5"
• Flat Bar Easy Way Size | 1.75" Min. Dia.: 12"
• Flat Bar Hard Way Size | 1" Min. Dia.: 8"
• Angle Iron Capacity Size | .75" (.125") Min. Dia.: 10"
• Shaft Diameter | .78"
• Shaft Center Distance Lower Rolls | 10.88"
• Upper Roll | 3.38" dia
• Lower Roll | 3.38” dia
• Pinch | Single
• Power | 220V - 3-Phase
• Shipping Weight | 420 lbs
• Material Type | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
• Speeds | 14285
• Shipping Dimensions | 60"x44"x59"

*Specifications subject to change without notice.
