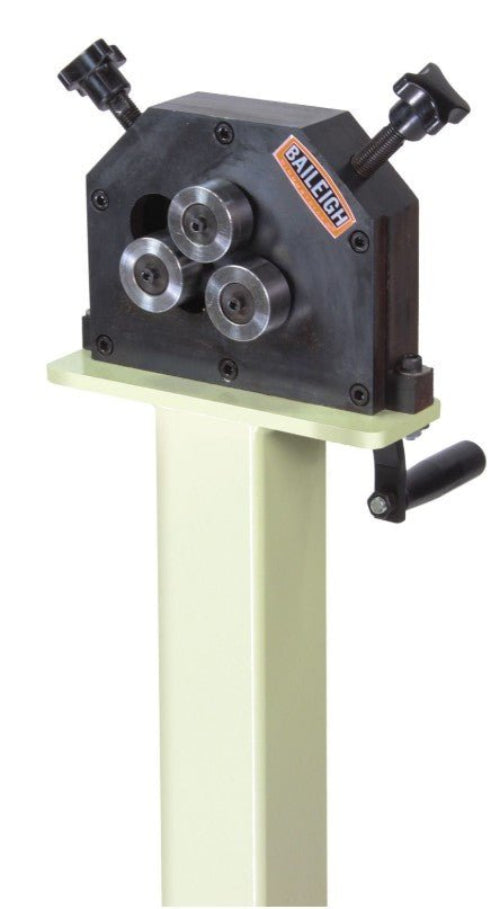

Baileigh Industrial R-M5 Ring Roller

We designed this portable dynamo to last a lifetime and built it from only the sturdiest plate steel parts. With this manual roll bender, you can easily make small complete circles.

Features:

• Bends up to .5” solid round rod.
• 3 driven rolls powered by hand crank.
• Allows bending on either side of the bottom roll for more radius options.
• Comes standard with tooling for flat bar, 1/4" Round and 1/2" Round.
• Optional tooling sets for round stock available.
• Includes convenient floor stand.
• Covered by a 1-year parts warranty and lifetime technical support by phone.

Specifications:

• Item Number | R-M5
• Capacity Solid Round (w/ optional tooling) | .5"
• Flat Bar Easy Way | 3/16" x 1"
• Power | Manual
• Shipping Weight | 85 lbs.
• Material Type | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel
• *Optional Tooling | Some applications may require optional tooling
• Shipping Dimensions | 30" x 40" x 18"

Optional Tooling (Sold Separately):

• 1007593 | 1/4" Round Tube Rolls
• 1010069 | 3/8" Round Tube Rolls
• 1007577 | 1/2" Round Tube Rolls

* specifications subject to change without notice.
