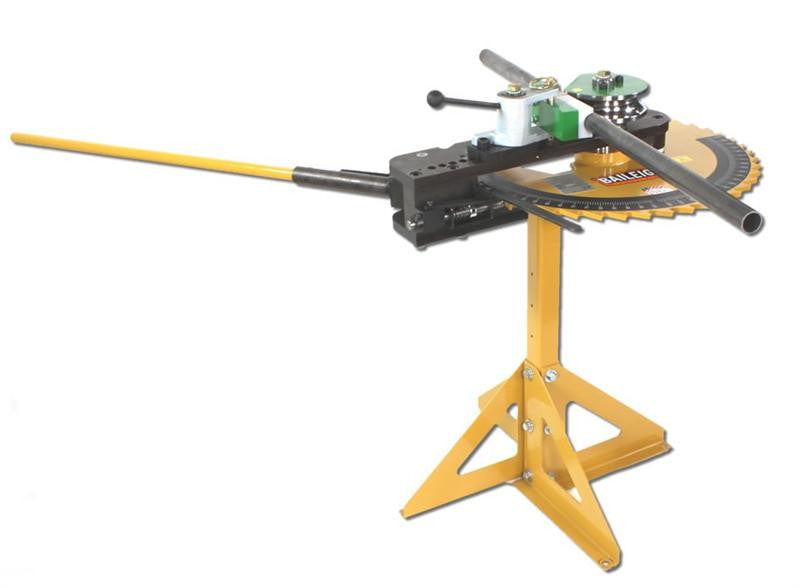

For the fabricator who needs to bend lower production runs, this manual tubing bender maintains a high standard of professional-looking bends. Recommended for projects using thin wall tubing.

MANUFACTURED IN USA

Features:

• Bends up to 1.75” OD tubing with a maximum wall thickness of .095” and 1” schedule 40 pipe.
• Large-diameter indexing allows you to bend up to 206° (180° plus spring-back) without having to re-index and re-pin—unlike most other manual tube benders on the market.
• Quick-release counter die system lets you easily load and unload the material.
• Tension springback mechanism holds position as the bend mechanism grabs the next tooth on the index wheel.
• Degree scale displays your bend angle for fast reference.
• All tooling has a start-of-bend indicator line so you can make complex bends with accuracy and confidence.
• Ratcheting bend system lets you conveniently shift to manual override for lighter-gauge materials.
• Ships mostly pre-assembled; simply attach the handle and stand.
• Accepts hundreds of round and square tubing die sets as well as round pipe die sets.
• Includes stand, degree dial, and handle.
• Steel plate construction ensures strength and precision.
• Backed by a 1-year parts warranty.
• Includes lifetime technical support. Contact our knowledgeable team by phone or email for as long as you’re using the bender.

Specifications:

• Minimum CLR | .5"
• Minimum OD | .25"
• Mild Steel Solid Rod | 1"
• Mild Steel Pipe Schedule 40 | 1"
• Mild Steel Round Tube Wall | 1.75" (.083)
• Mild Steel Square Tube Wall | 1" (.125)
• Stainless Steel Pipe Schedule | 40 .75"
• Stainless Steel Round Tube Wall | 1.5" (.083)
• Chromoly Round Tube Wall | 1.5" (.083)
• Aluminum Round Tube Wall | 2" (.125)
• Maximum Center Line Radius Clr | 10.5"
• Power | Manual
• Shipping Weight | 410 lbs
• Special Notes | Tooling not included
• Shipping Dimensions | 42" x 22" x 42"
