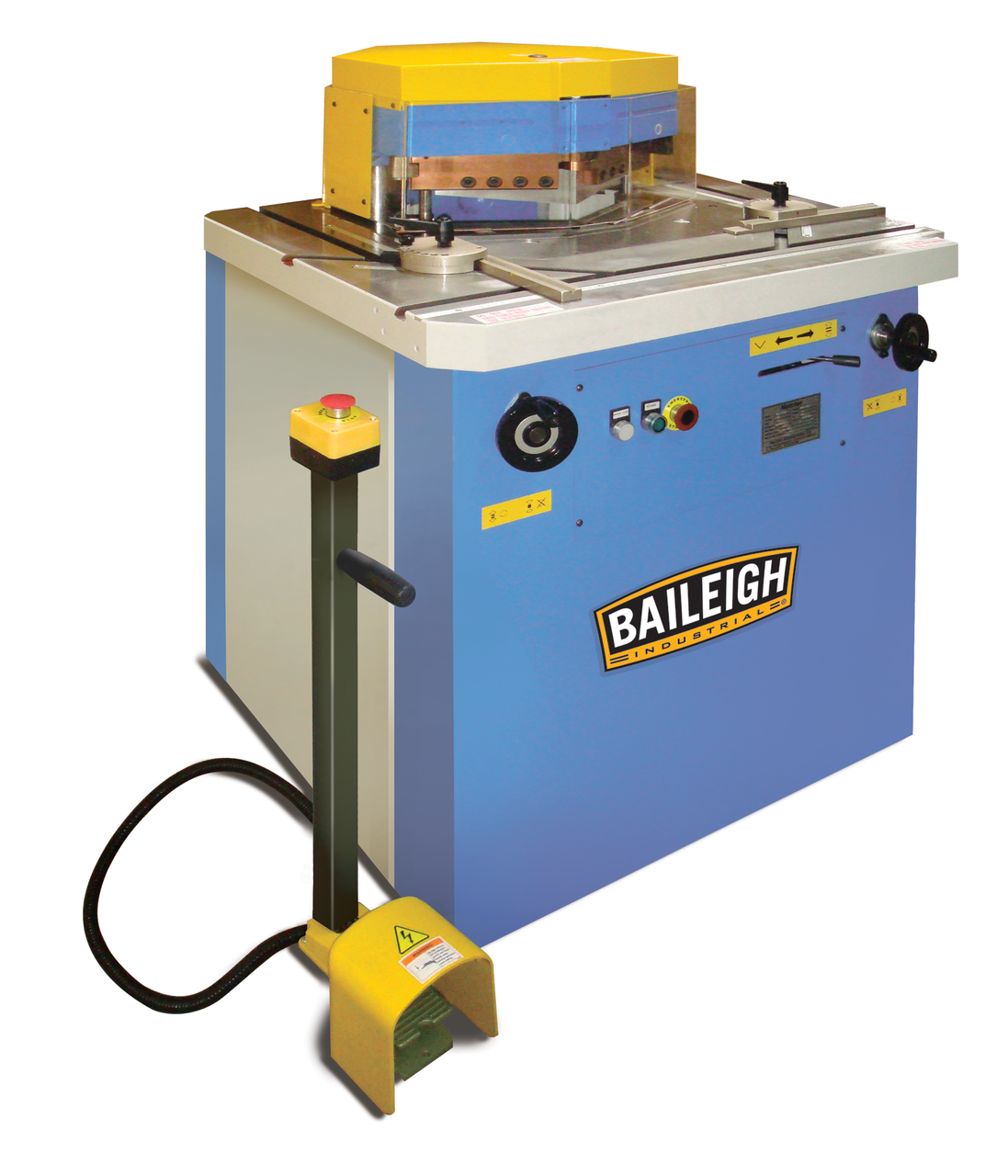

Baileigh Industrial SN-V04-MS Sheet Metal Notcher

Ever have odd angles that you need to notch out of sheet metal, something that will look totally whack when finished if not done right? Enter the SN-V04-MS; this great machine is a 220 volt three phase hydraulic sheet metal notcher. This notcher will cut notches from 30 to 140 degrees in mild steel up to 6mm in thickness and will do this at up to 15 strokes per minute. The oversized 27 x 23.5 table includes table guides and miter blocks to ensure accurate notches every time. The SN-V04-MS sheet metal notcher has 8.5 long blades that are negatively raked to pull the material to the stops during the cut. The blades can also be resharpened many times for even more life and cost savings.

Specifications:

• Table Size | 27" x 23.5"
• Table Dimensions | 37.4" x 31"
• Motor | 4 hp
• Notch Angle | 30° – 140° Variable
• Strokes Per Minute | 15
• Blade Gap Adjustment | Manual
• Max. Capacity |.237"
• Max. Capacity Mild Steel (SS capacity with optional blades) | 9 ga. (13 ga.)
• Power | 220V / 3-phase
• Shipping Weight | 1,100 lbs.
• Shipping Dimensions | 60" x 44" x 68"
• Max Notch Dimensions | 8-1/2" x 8-1/2"

*Specifications subject to change without notice.
