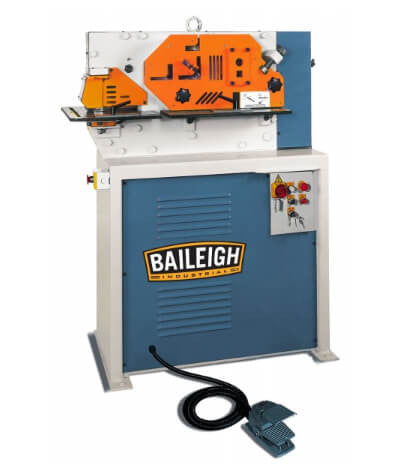

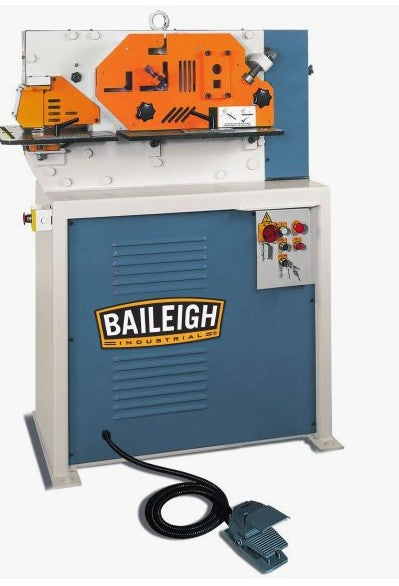

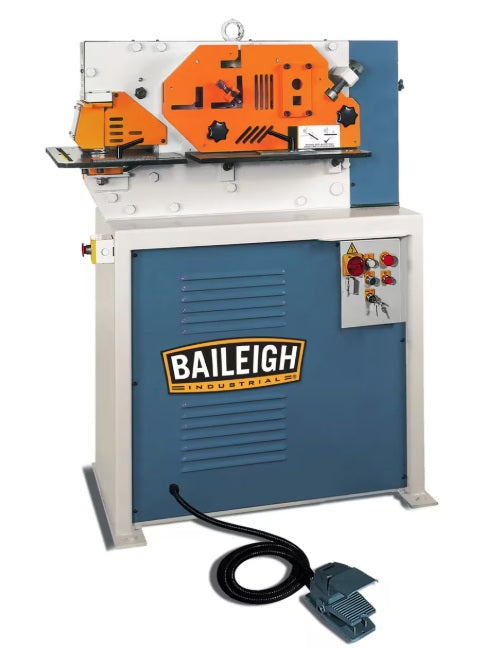

Baileigh Industrial SW-441 4 Station Hydraulic Ironworker

This pivot-style hydraulic ironworker combines a compact footprint with a budget-friendly price to meet the needs of small fabrication shops. The SW-441 includes just about every feature you’d want to help you shear and punch smoothly.

Features:

• Runs on 220-volt single-phase power and will work at virtually any site in North America.
• Delivers 44 tons of force for punching and shearing.
• Stations for 4 main functions: flat-bar shearing, angle cutting, section cutting for multiple profiles, and punching.
• Runs at up to 23 cycles per minute, increasing the speed of your projects.
• Product hold-downs for all stations ensure clean, straight shearing.
• Large reference tables accommodate bigger pieces of material and easily pull out from the machine, so that you can get the punch closer to angle iron.
• Product guides make repeatability a cinch when you’re setting up production runs.
• Large-button control panel and foot pedal punch control are conveniently located.
• Offers adjustable stroke control, with upstrokes and downstrokes for the punching and shearing sections and a maximum stroke length of 1.125".
• Accepts optional tooling available from Baileigh Industrial, such pipe notching and press brake attachments, to make this machine even more versatile.
• Includes .75” punch and die.
• Heavy welded steel plate construction maintains accuracy, minimizes flex, and makes the machine last longer.

Why choose the SW-441 over similar machines?

• This ironworker’s small footprint will fit into tight shop spaces and just about any job site.
• The SW-44 comes standard with features that you won’t find on most ironworkers in this price range, like a large table with product guides and a foot pedal.
• Quick-release punch and die system makes changeovers faster and more efficient.
• CE certifications vouch for the machine’s exacting quality and safety standards.

Specifications:

• Motor | 3 hp
• Width x Thickness | 13.77" x .25"
• Round Bar Shear | 1.125"
• Punch Capacity | .75" x .625"
• Punching Pressure | 44 Tons
• Throat Depth | 6.88"
• Square Bar Shear | 1" x 1"
• Bar Shearing Working Height | 44.88"
• Angle Shearing Working Height | 40"
• Angle Shearing at 90° | 3" x 3" x .25"
• Angle Flange Trim | 3.14" x .393"
• Blade Length | 13.87"
• Max. Stroke Length | 1.125"
• Diameter x Thickness | 1.5" x .375"
• Cycles / Min. | 23
• Flat Bar Shearing | 7.87" x .5"
• Flat Shearing Working Height | 42.32"
• Power 220V | 1-Phase
• Shipping Weight | 1530 lbs
• Shipping Dimensions | 60"x48"x71"

*Specifications subject to change without notice.
