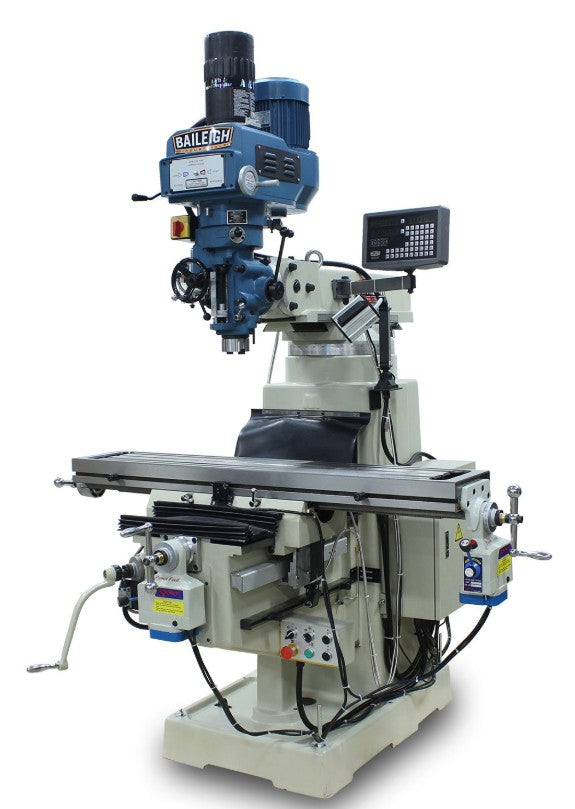

Baileigh Industrial VM-1054E-VS Variable Speed Vertical Mill

The VM-1054E-VS is a variable speed milling machine that runs from 60 to 4,200 rpm. By selecting the right speed tooling life is lengthened and cut quality improves, both of which save money. Baileigh Industrial selected an ISO 40 taper for its spindle to help improve performance as well. A larger spindle is stronger and has tighter tolerances over a longer period of time. Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame. The stronger you make he platform the better the cutting is. Table size is another very important component when deciding which milling machine to buy and VM-1054E-VS has a 10” x 54” table that has been hardened, ground, polished, and coated with a special coating called Turcite® B to extend life and help eliminate corrosion.

All three axis are powered on the VM-1054E-VS making it easy on the operator. Another nice feature is the two axis digital readout that comes standard. This digital readout is accurate to 1/10 of 1 thousandth of an inch. A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1054E-VS.

Specifications:

• Item Number | VM-1054E-VS
• Table Size | 54" x 10"
• Spindle Center To Column Min Max | 7.87" – 26.77"
• Spindle Diameter | 3.93"
• Spindle Feed Per Rev | .0015"/.003"/.006"
• Spindle Head Swivel | 45° (F&R) 90° (R&L)
• Motor Spindle | 3 hp
• Travel Auto X Axis | 32"
• Travel Auto Y Axis | 13.75"
• Travel Auto Z Axis | 13"
• Spindle Nose To Table Min Max | 4" – 17"
• Spindle Speed | 60 – 4200 rpm
• Spindle Taper ISO | 40
• Table Load Capacity | 550 lbs.
• T Slots | .625"
• Motor Coolant | 1/8 hp
• Cross Travel Of Ram | 20"
• Power | 220V / 3-phase
• Shipping Weight | 3,000 lbs.
• Spindle Travel | 5"
• Shipping Dimensions | 60" x 60" x 87"

* Specifications subject to change without notice.
