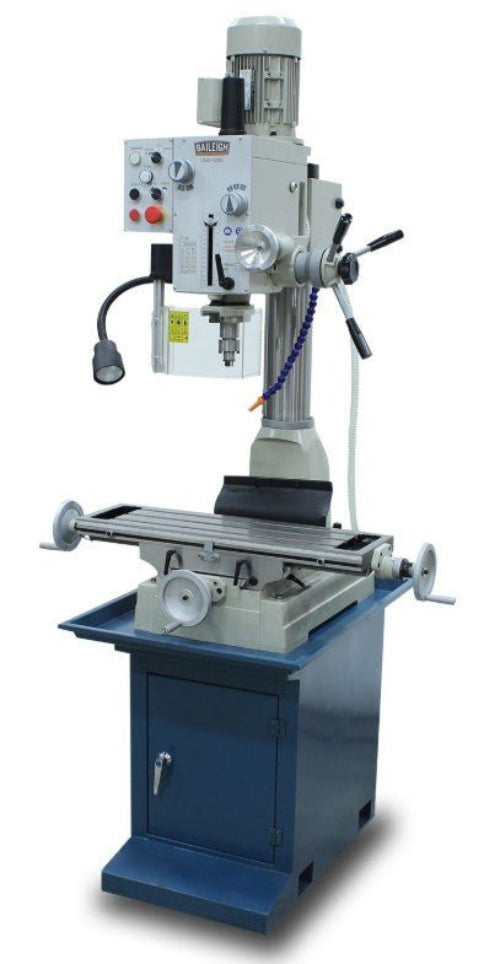

Baileigh Industrial VMD-828G Vertical Mill Drill

Don’t have the space for both a gear-driven drill press and a milling machine? The VMD-828G combines 2 functions in 1 space-efficient machine. This mill drill lets you set the right speed for a given application, providing greater control and extending tooling life.

*** REPLACES MODEL VMD-40G ***

Features:

• 2 hp motor runs on 110-volt power and will work almost any site.
• 1.5” maximum drilling capacity.
• Includes 29” x 8” milling-style table which expands the machine’s possible uses.
• Gear-driven head allows you to run tooling at the proper speed for each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
• Rigid base and very wide cast column adds to machine’s strength and eliminates flexing when milling or drilling at full capacity.
• Comes standard with coolant system, R8 spindle taper, and a flexible halogen light.

Specifications:

• Spindle Speeds (RPM) |
• 90
• 210
• 345
• 670
• 1180
• 1970
• Table Size | 28.75" x 8.25"
• Motor | 2 hp
• X Axis Travel | 19-1/2"
• Y Axis Travel | 9"
• Spindle Nose to Base | 16.14"
• Spindle Stroke | 4-3/4"
• Spindle Taper | R8
• T Slots | .550"
• Coolant Pump | 1/8 hp
• Power | 110V
• Shipping Weight | 710 lbs.
• Drill Capacity | 1.5"
• Spindle Travel | 4.75"
• Shipping Dimensions | 60"x44"x48"

*Specifications subject to change without notice.
