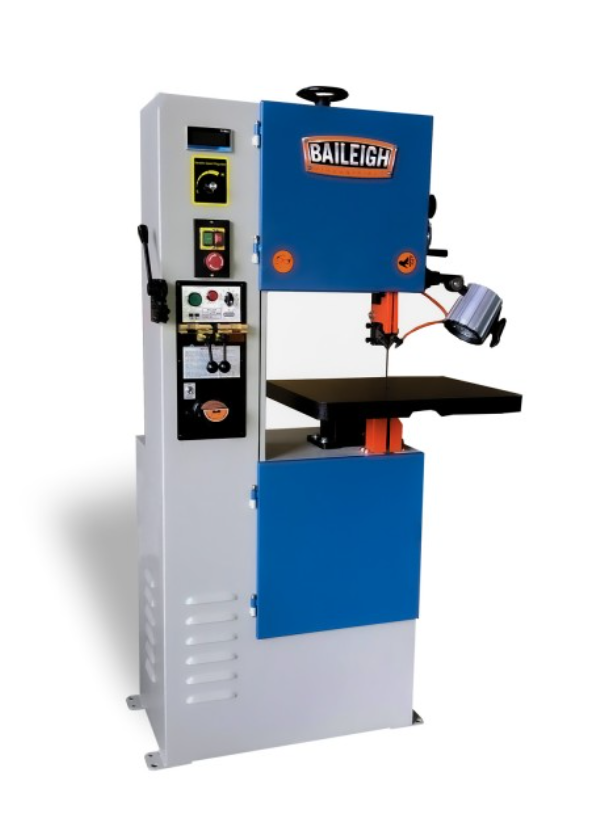

Baileigh Industries BSV-12VS-V2 Vertical Band Saw

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Within our lineup of vertical bandsaws, the BSV-12VS-V2 metal cutting band saw increases capacity and adds an inverter to control the blade speed. Make straight and curved cuts with the vertical blade. Recommended for any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.

Features:

• 1 hp motor runs on 120-volt power.
• Wide 12.2" throat depth.
• 6.69” maximum cutting thickness.
• Accepts standard 1/8” to 1/2” blades.
• Cast iron table can pivot front to back and left to right.
• Variable speed from 100 to 1000 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
• Digital read out lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life.
• This industrial-grade band saw includes everything you need to cut out the center of the material without having to fix a cut through it.
• Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
• Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
• Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
• Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
• LED work light lets you see what you’re cutting more clearly.
• Covered by a 1-year parts warranty.
• Both the saw and its replacement parts are typically in stock for fast deliveries.
• Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this vertical metal-cutting band saw.

Specifications:

• Speed Control | Inverter
• Table Size | 15.94" x 19.68"
• Butt-Welder Capacity (Blade Width) | .125” – .5”
• Slant of Table | 45°R & 15°L
• Motor | 1 hp
• Maximum Thickness | 6.69"
• Throat Depth | 12.2"
• Working Height | 34.84"
• Blade Length | 98.81" – 102.75" (2510–2610mm)
• Blade Speed | 100 - 1000 fpm
• Blade Thickness | .52” (0.64mm)
• Power | 120 volt
• Shipping Weight | 668 lbs
• Included Blade Size | 0.23” (6mm) 14T
• Shipping Dimensions | 60” x 45” x 81”
