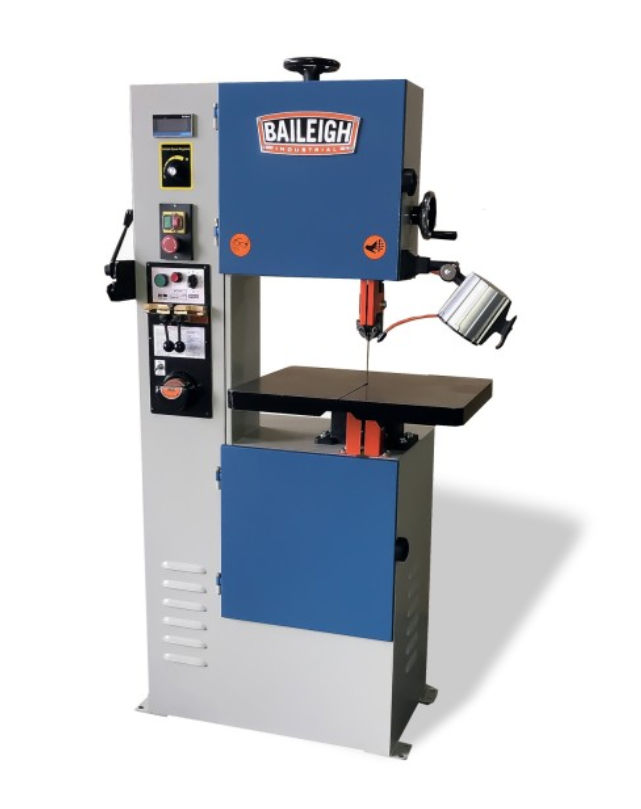

Baileigh Industries BSV-14VS-V2 Vertical Band Saw

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Within our lineup of vertical bandsaws, the BSV-14VS-V2 metal cutting band saw increases capacity and adds a variable-speed pulley. Make straight and curved cuts with the vertical blade. Recommended for any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.

Features:

• 1 hp motor runs on 120-volt power.
• Wide 14.17" throat depth.
• 7.08” maximum cutting thickness.
• Accepts standard 1/8” to 1/2” blades.
• Cast iron table can pivot front to back and left to right.
• Variable speed from 110 to 1200 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
• Change the speed with the hand wheel (just turn right for higher speed, left for lower).
• Speed scale lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life.
• This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.
• Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
• Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
• Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
• Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
• Halogen work light lets you see what you’re cutting more clearly.
• Covered by a 1-year parts warranty.
• Both the saw and its replacement parts are typically in stock for fast deliveries.
• Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this metal-cutting band saw.

Specifications:

• Table Size | 15.94” x 19.68" (405 x 500mm)
• Butt-Welder Capacity (Blade Width) | .118” – .625” (3 – 16mm)
• Slant of Table | 15° L & 45° R
• Motor | 1 hp
• Maximum Thickness | 7.08"
• Throat Depth | 14.17"
• Working Height | 35"
• Blade Length | 111.8"-115.03" (2840–2922mm)
• Blade Speed | 110 - 1200 fpm
• Blade Thickness | .032"
• Power | 120 volt
• Shipping Weight | 807 lbs
• Included Blade Size | 0.23” (6mm) x 14T
• Shipping Dimensions | 39.7” x 27” x 84.46” (1008 x 686 x 2145mm)
• Machine Dimensions | 36.6”l x 24.4”w x 76.77”h (930 x 620 x 1950mm)
