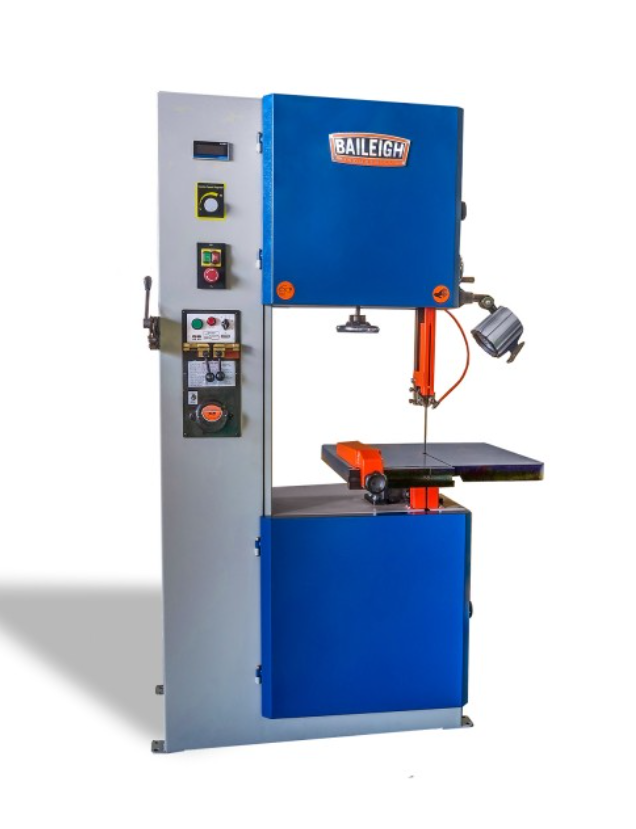

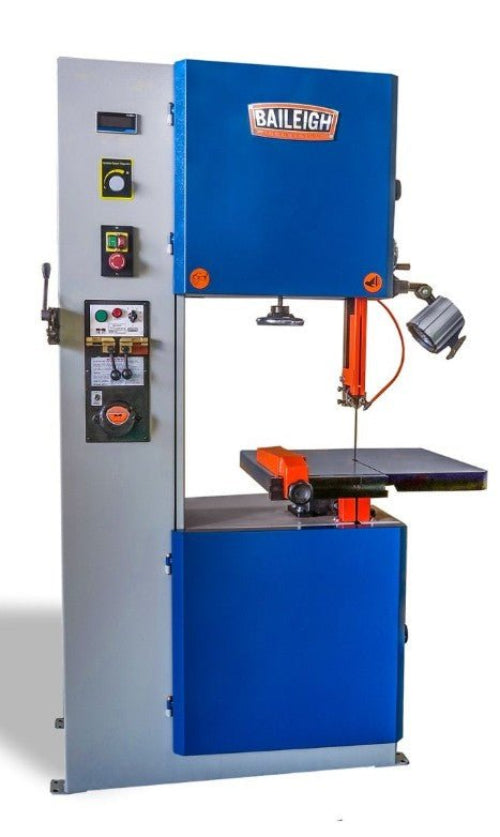

Baileigh Industries BSV-18VS-V2 Vertical Band Saw

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Within our lineup of vertical bandsaws, the BSV-18VS-V2 metal cutting band saw increases capacity and adds variable-speed. Make straight and curved cuts with the vertical blade. Recommended for any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.

Features:

• 1 hp motor runs on 120-volt power.
• Wide 18" throat depth.
• 12.9” maximum cutting thickness.
• Accepts standard 1/8” to 5/8” blades.
• Cast iron table can pivot front to back and left to right.
• Includes a cast iron rip fence to make sure your cuts are straight and repeatable.
• Variable speed from 90 to 1400 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
• Digital read out lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life.
• This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.
• Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
• Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
• Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
• Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
• LED work light lets you see what you’re cutting more clearly.
• Covered by a 1-year parts warranty.
• Both the saw and its replacement parts are typically in stock for fast deliveries.
• Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this metal-cutting band saw.

Specifications:

• Speed Control | Inverter
• Table Size | 19.68" x 21.25"
• Butt-Welder Capacity (Blade Width) | .125” – .625”
• Slant of Table | 15° Left, 45° Right
• Motor | 1 hp
• Speeds | Variable
• Maximum Thickness | 12.9"
• Throat Depth | 18"
• Working Height | 33.26"
• Blade Length | Range 146.45" - 147"
• Blade Speed | 95 - 1400 fpm
• Blade Thickness | .032"
• Power | 120 volt
• Shipping Weight | 807 lbs
• Included Blade Size | 14 TPI, 1/4" wide blade included
• Shipping Dimensions | 45.67” x 30.7” x 78.7” (2000 x 1160 x 780mm)
• Machine Dimensions | 43.3”l x 32.28”w x 71.65”h (1100 x 820 x 1820mm)
