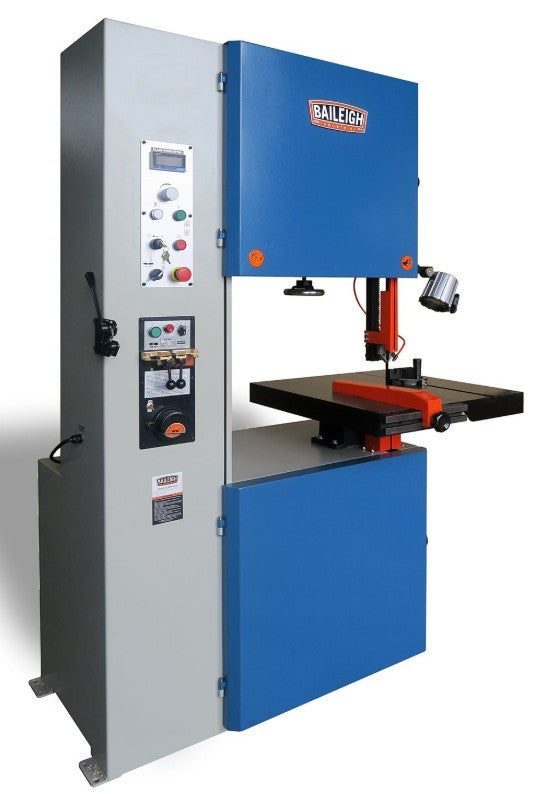

Baileigh Industries BSV-24VS-V2 Vertical Band Saw

Images are representative and for illustrative purposes only, actual product may differ from image shown.

The BSV-24VS-V2 is the largest non-mitering vertical bandsaw in our line up, this metal cutting band saw increases capacity and adds variable-speed. Make straight and curved cuts with the vertical blade. Recommended for any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.

Features:

• 3 hp motor runs on 220-volt three phase power.
• Wide 23.6" throat depth.
• 12.2” maximum cutting thickness.
• Accepts standard 1/8” to 5/8” blades.
• Cast iron table can pivot left to right.
• Includes a cast iron mitering system, rip fence, and protractor to make sure your cuts are straight and repeatable.
• Inverter controlled variable speeds from 85 to 2200 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
• DRO lets you see the blade speed, so you can choose the right settings for your material and extend blade life.
• This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.
• Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
• Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
• Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
• Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
• Halogen work light lets you see what you’re cutting more clearly.
• Covered by a 1-year parts warranty.
• Both the saw and its replacement parts are typically in stock for fast deliveries.
• Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this metal-cutting band saw.

Specifications:

• Item Number | BSV-24VS-V2
• Speed Control | Inverter
• Table Size | 24"x24"(cast) & 7.8"x24"(steel)
• Welder Capacity | .74"
• Slant of Table | 45°R & 15°L
• Motor | 3 hp
• Maximum Thickness | 12.2"
• Included Accesories | Blade welder, LED work light, Chip blower, Rip fence, Miter gauge
• Throat Depth | 23.6"
• Table Height | 36.4"
• Blade Length | 177.95”-179.13"(4520-4550mm)
• Blade Speed (fpm) | 85-2200 Variable Speed
• Blade Thickness | .032"
• Power | 220V / 3-phase
• Shipping Weight | 1025 lbs
• Included Blade Size | 0.118”(13mm) x 14T
• Shipping Dimensions | 53.54”l x 33.46”w x 85.43”h
• Machine Dimensions | 49.6"l x 33"w x 86.22"h
