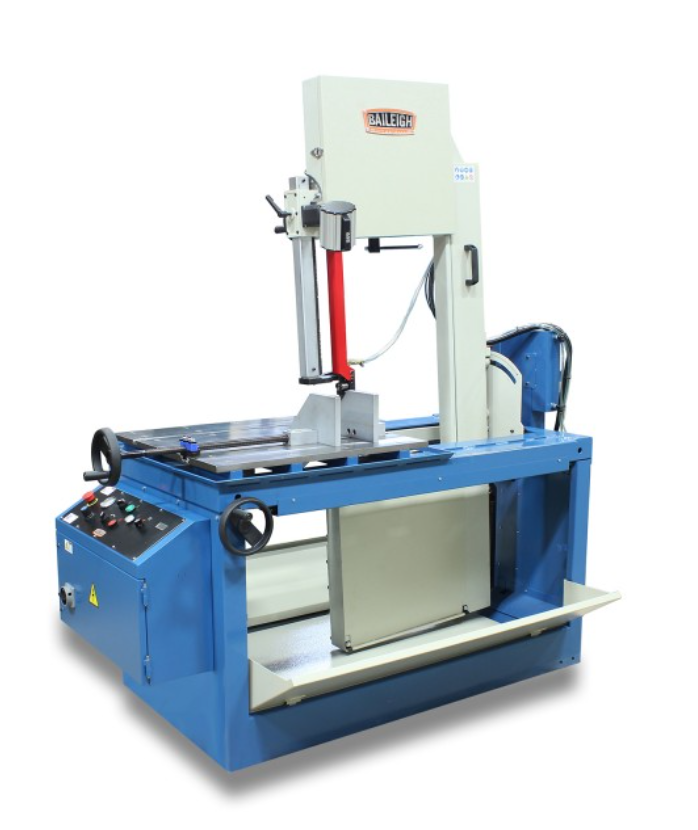

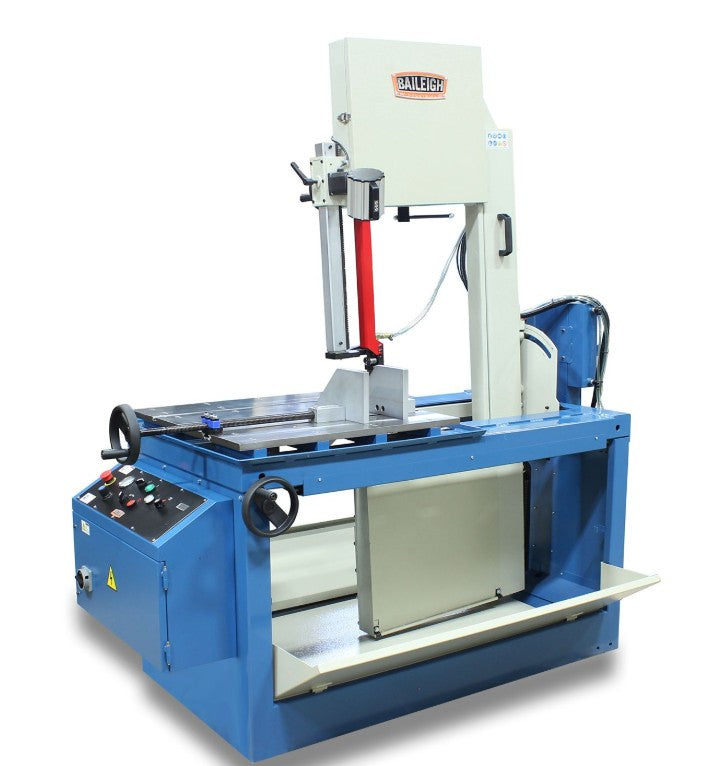

Baileigh Industries BSVT-18P Vertical Tilt Frame Band Saw

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Vertical tilt frame bandsaws have been a staple of the heavy industrial scene for a long time and are very popular for cutting structural steel.  The BSVT-18P is a pneumatically operated semi-automatic tilting frame vertical band saws that will make quick work of any project that you may have. Recommended for any shop that cuts a variety of heavy structural materials.

Features:

• 2 hp motor runs on 220-volt three-phase power.
• Wide 18" throat depth.
• 23” maximum cutting thickness.
• Miters 45 degrees left and right.
• Accepts standard 1-1/16” blades.
• Machined plate steel table provides a sturdy work area.
• Variable speed from 84 - 312 fpm allows you to adjust the speed for eah application.
• Change the speed easily with the turn of a knob.
• Digital readout lets you see the exact blade speed, so you can choose the right settings for your material and extend blade life.
• Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
• Halogen work light lets you see what you’re cutting more clearly.
• Covered by a 1-year parts warranty.
• Both the saw and its replacement parts are typically in stock for fast deliveries.
• Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this metal-cutting band saw.

Specifications:

• Item Number | BSVT-18P
• Solid Round Capacity | 11-13/32"
• Head Miter | 45° Left and Right
• Coolant System | Yes
• Coolant Capacity | 18.35 Gallons
• Rectangle Capacity | 20" x 16-1/4"
• Miter Angle | 45° - 0° - 45°
• Motor | 2 hp
• Maximum Thickness | 20"
• Throat Depth | 16-1/4"
• Working Height | 39.5"
• Capacity Rectangle | 45° 13-57/64" x16-l/4" - Right / 13-19/32"xl6-l/4" - Left
• Blade Guide | Bearing and Carbide
• Blade Length | 168.5"
• Blade Speed | 84 - 312 fpm
• Blade Thickness | .035"
• Max. Vise Opening | 18"
• Motor Coolant | 1/8 hp
• Power | 220V 3-phase
• Shipping Weight | 1510lbs
• Shipping Dimensions | 82" x 38.2" x 87.7"
