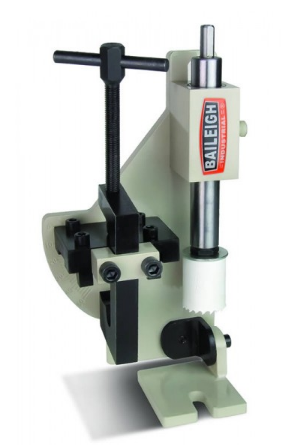

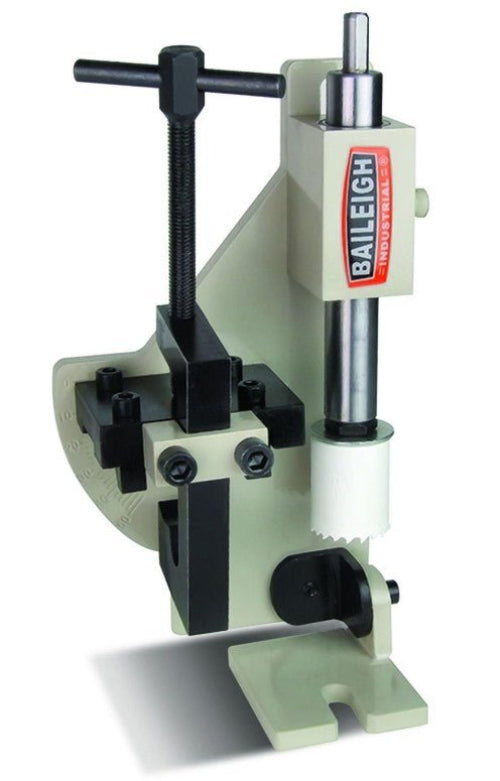

Baileigh TN-210H Hole Saw Notcher

Need to weld tubing at varying angles? The TN-210H makes notches up to 50° in less than 30 seconds. Built from .5” plate steel, this hole saw notcher comes at an economical price. Maximum capacity of 2” round tube. This hole saw notcher can be vertically mounted on a drill press. It also works with a hand drill. To handle larger pieces, the TN-210H can be horizontally mounted on a weld bench or in a vise and powered by a portable drill.

Recommended for: Garage fabricators working on mud racers, rock crawlers, go karts, and more.

Features:

• 1” ground and polished spindle shaft reduces vibrations and prolongs the machine’s lifetime of use.
• Offers .5” and 5/8” spindle adapters for different hole saws (sold separately).
• Solidly-built steel plate frame maintains accuracy and adds strength to the tube notcher.
• Set of industrial-grade needle bearings are replaceable. You can get even more years of value out of the machine by eventually swapping them out.
• Hole saw notcher is covered by a 1-year parts warranty and unlimited phone support from Baileigh’s service team.

Specifications:

• Spindle Adapter | 1/2" and 5/8"
• Notching Capacity (OD) | 2"
• Spindle Size | 1/2"
• Angle Adjustment | 0 - 50°
• Power | Manual
• Shipping Weight | 10 lbs
• Shipping Dimensions | 13" x 7" x 7"
