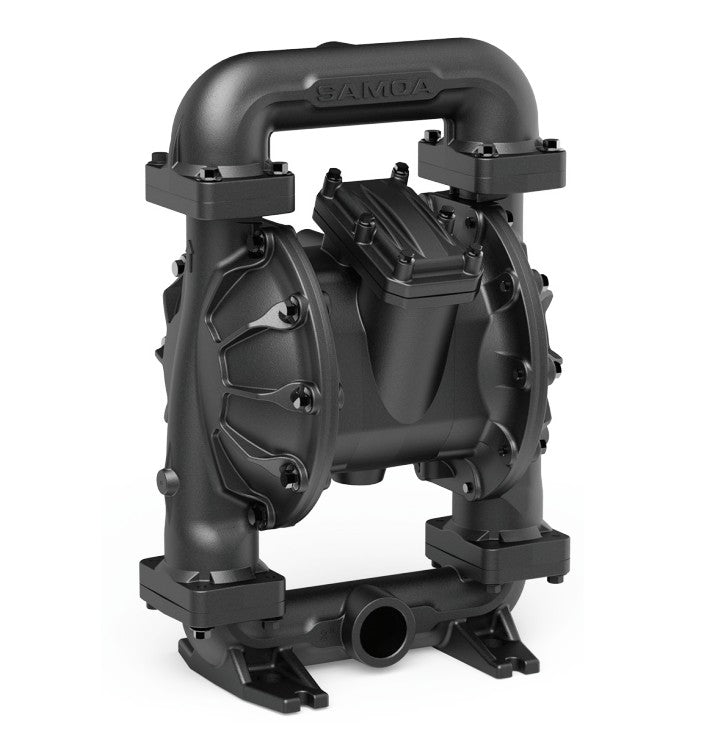

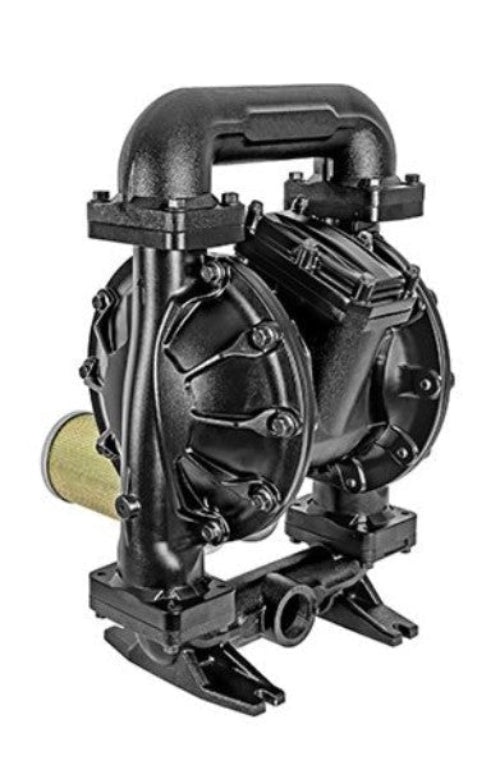

Balcrank 1120-041 AODD TraditionalFlo TF170 Universal Pump

TraditionalFlo pump is designed to handle a wide range of fluids in very large volume transfer and fluid evacuation applications Balcrank’s TraditionalFlo pump transfers fluid up to 170 gal/min. Combining conventional flow design with pivoting air valve for increased delivery and reliable performance.

Specifications:

• Air inlet | 3/4” NPT(F)
• Fluid inlet | 2 ” NPT(F)
• Fluid outlet | 2 ” NPT(F)
• Max. free flow | 170 gal/min (605 l/min)
• Air pressure range | 22-115 psi (1.5-8 bar)
• Max. solid suspension | 1/4” (6 mm)
• Wetted materials | Aluminum, Hytrel, Viton
• Recommended Fluids | Anti-freeze (Glycol), windshield wash solution, lubricants, waste oil, waste fluid, used fluid and anti-freeze
• Recommended Applications | Very large volume transfer, de-wattering and fluid evacuation
• Markets Served | Mining and construction, Railroad and mass transit vehicles, In-plant transfer, Agriculture/Farm implement, Lube trucks
