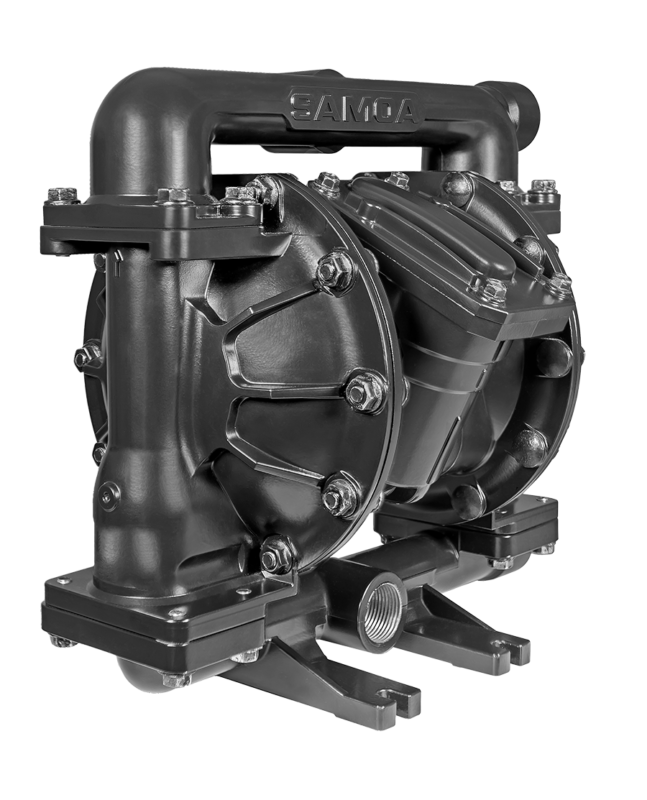

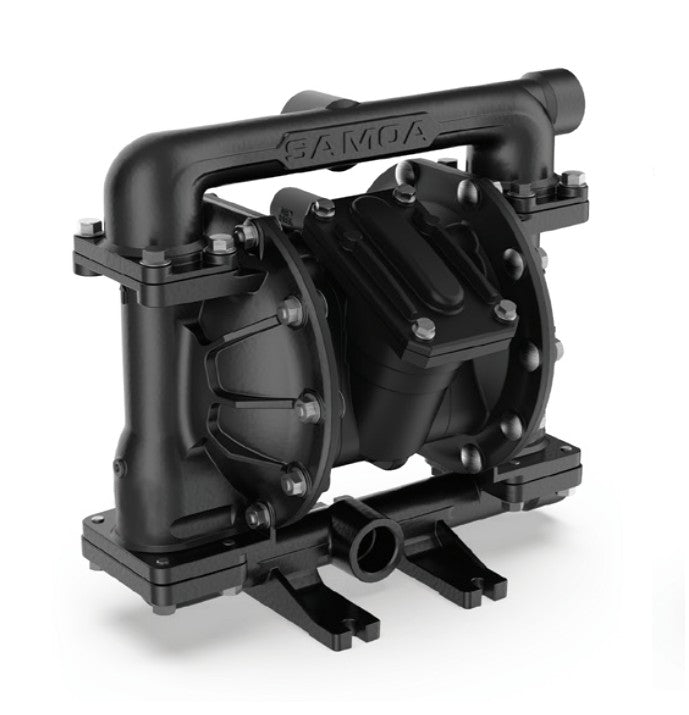

Balcrank 1120-044 UP10 1" AODD Diaphragm Pump

The new Balcrank UP10 pump combines a Universal design with a unique frictionless Pivot-Shaft Air Valve to provide maximum performance and energy efficiency.

Features:

• Higher Efficiency - Maximum fluid flow with reduced air consumption.
• Increased Reliability - No stall, no icing, reliable start-up and longer air valve and diaphragms life.
• Easy Servicing - Simplified maintenance and cleaning. The pump is held together by using one size of carriage bolt and nut allowing a much faster tear-down and rebuild.
• Compact Design
• Connectivity - Can be configured to connect a Smart Pump-Controller System to actuate, control and monitor your pumps.

Specifications:

• Pressure Ratio | 1:1
• Maximum Free Delivery | 53 US gal/min (200 l/min)
• Air Pressure Operating Range | 20 to 120 psi (1,5 to 8 bar)
• Maximum Size Solids in Suspension | 1/4" (6,4 mm)
• Maximum Dry Suction Lift | 16' (5 m)
• Maximum Wet Suction Lift | 26’ (8 m)
• Displacement per Cycle | 0.2 gal (0,85 l) delivery per cycle depends on the diaphragm's material, air inlet pressure and fluid viscosity
• Fluid Inlet and Outlet Connections (multi-ports) | 1" NPT (F) - Threaded
• Air Inlet Connection | 1/2" NPSM (F)
• Air Exhaust Connection | 1" NPT (F)
• Sound Level | 75 dB (A) @ 50 cycles/min @ 72 psi
• Product Dimensions | 13.75" x 12.5" x 8.5"
• Product Weight | 25 lbs
