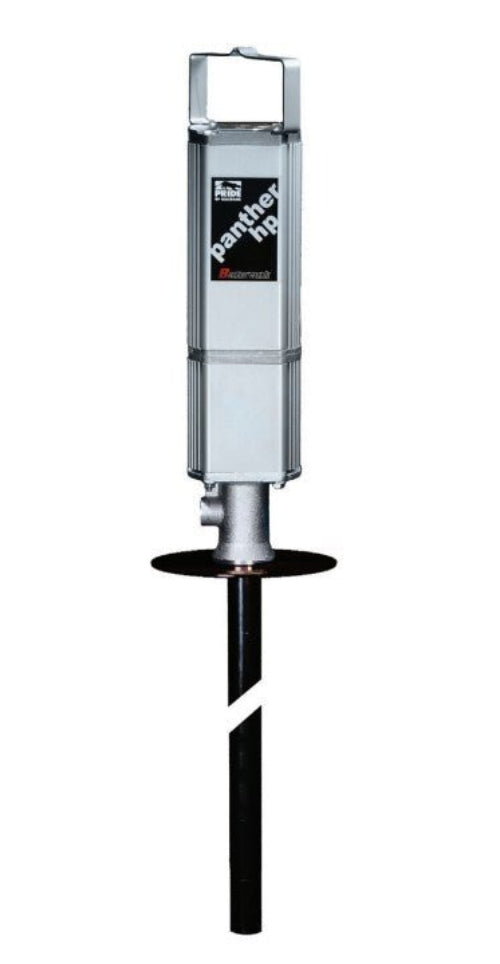

Balcrank 1150-009 Panther HP 50:1 Grease Piston Pump 25-35 lb

Designed for lower volume users up to 2 dispense points. Designed for 25-35, 120, and 400 lb. drums. Ideal for lower volume grease fittings on trucks and farm implements. Panther® pump is a double acting positive displacement capable of delivering up to 3.4 lbs. (1.54 kg) per minute.

Fluids:

• Grease up to NLGI-2

Applications:

• Roll-around unit for small vehicle grease points

• Agriculture/farm implements

• Small auto/truck shops

• Tire & transmission shops

• In-plant low volume use

Specifications:

• Pump ratio | 50:1

• Continuous duty free flow | 2 lb/min

• Cycles per lb @ 100 psi (7 bar) free flow | 70

• Pump delivery with NLGI-2, 75º F (23.8º C), 100 psi (7 bar) air pressure and free flow | 3.4 lb/min (1.54 kg/min)

• Operating air pressure range | 40-150 psi (2.8-10 bar)

• Max fluid stall pressure @ 150 psi (10 bar) air | 7,500 psi (517 bar)

• Effective Air Piston Diameter | 2 1/2” (63.5 mm)

• Air motor stroke | 3.25” (83 mm)

• Air consumption 100 psi (7 bar) & 1.5 lb/min (.68 kg/min) | 14.5 SCFM

• Air inlet | 1/4” NPT(F)

• Fluid outlet | 1/4” NPT(F)

• Wetted materials | Stainless Steel, Carbon Steel, Brass, Aluminum, Delrin,
• Ultrathane, and Buna-N

• Noise | 92 dB

• Service Bulletin | SB 1063

• Weight | 15 lb

NOTE: Pumping distance and pipe diameter will effect dispensing performance.
Warning! Do not use any Pride series products with flammable fluids
