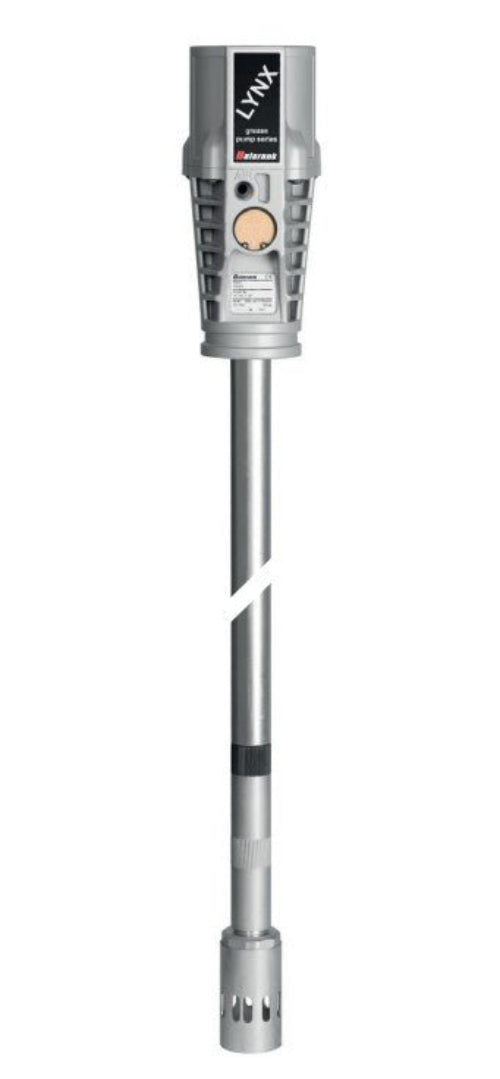

Balcrank 1150-022 Lynx 55:1 Grease Piston Pump, 25-35 LB

LYNX 55:1 Pump is designed for 25-35, 120, and 400 lb. drums, portable use, and single-point dispense. Ideal for the low-volume user for grease fittings on smaller vehicles. LYNX grease pumps are double-acting positive displacement capable of delivering up to 1.2 lbs (.54 kg) per minute.

Fluids:

• Grease up to NLGI-2

Applications:

• Roll-around unit for small vehicle grease points

• Agriculture/farm implements

• Small auto/truck shops

• Tire & transmission shops

• In-plant low volume use

Specifications:

• Pump ratio | 55:1

• Continuous duty free flow | 7 lbs/min

• Cycles per lb @ 100 psi (7 bar) free flow | 318

• Pump delivery, 100 psi (7 bar) air pressure and free flow | 0.70 lb/min (0.32 kg/min)

• Operating air pressure range | 20-140 psi (1.5-10 bar)

• Max fluid stall pressure @ 140 psi (10 bar) air | 7,700 psi (550 bar)

• Effective Air Piston Diameter | 2.75" (70 mm)

• Air motor stroke | 1.5: (38 mm)

• Air consumption | 90 psi (6 bar) & 110 cycles per minute, 5.8 SCFM

• Air inlet | 1/4" NPT(F)

• Fluid outlet | 1/4" NPT(F)

• Wetted materials | Steel, Zinc, Aluminum, Buna-N, PTFE (Teflon)

• Noise | 92 dB

• Service Bulletin | SB 1116

• Weight | 8 lbs
