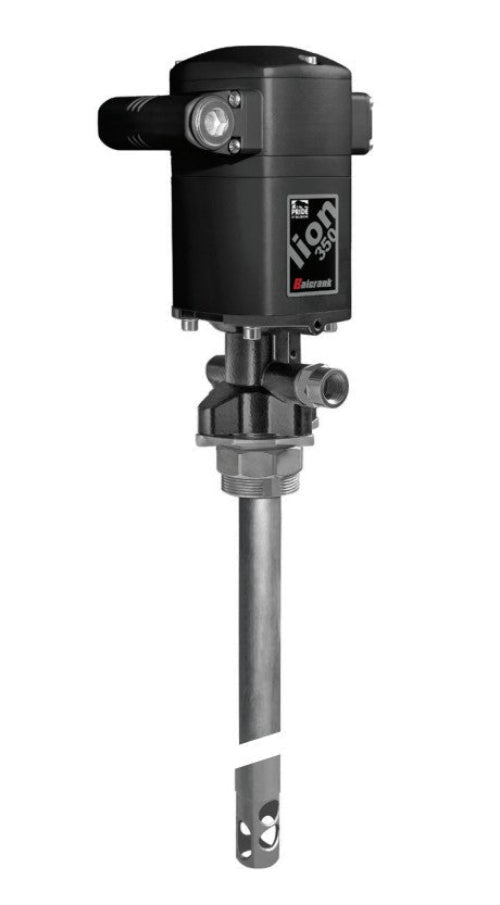

Balcrank 1450-011 Lion 350 60:1 Grease Piston Pump 400 lbs

Designed for 35 lb, 120, and 400 lb. containers. Ideal for the users that need reliable grease delivery and medium length systems that have multiple dispense points. This Lion grease pump delivers up to 4.4 lb (2 kg) per minute.

Fluids:

• Grease up to NLGI-2

Applications:

• Agriculture/farm implements

• Small auto/truck shops

• Tire & transmission shops

• In-plant medium volume use

• Mining and construction

• Truck fleets

• Railroad/Mass transit

• Lube trucks

• Marine

Specifications:

• Cycles per lb/min @ 100 psi (7 bar) free flow | 50

• Operating air pressure range | 20-145 psi (1.5-10 bar)

• Max pump delivery | 4.4 lb/min (2 kg/min)

• Pump delivery with NLGI-2, 68º F (20º C), 70 psi (5 bar) air pressure and 80 cycles per minute | 1.1 lbs/min (500 g/min)

• Max fluid stall pressure | 8,700 psi (600 bar)

• Air inlet | 3/8” NPT(F)

• Fluid outlet | 3/8” NPT(F)

• Effective Air Piston Diameter | 3.15” (80 mm)

• Wetted materials | Cast Iron, Hard Chromed Steel, Steel, UHMWPE, NBR, PTFE, Viton

• Service Bulletin | SB 1153

• Ship Weight | 15 lbs

Do not use any Lion series products with flammable fluids.
