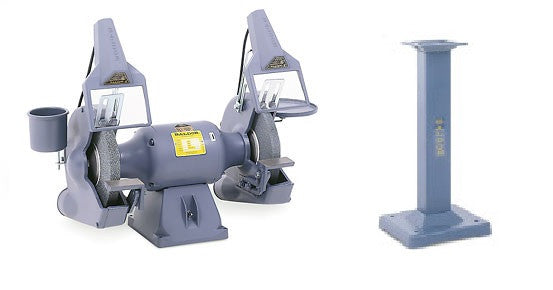

Baldor 10" Deluxe Bench Grinder With GA16 Pedestal Package

General purpose grinding. Shapes parts by removing material. Motor is rated 1 horsepower or 1.5 horsepower, making it possible to grind very large objects.

1022WD Features:

• Built for heavy duty grinding, powered by 1 hp Baldor motor
• Slim design provides extra clearance for grinding odd-shaped pieces
• Cast iron exhaust-type guards accommodate a 4" vent pipe
• Adjustable cast iron tool rest, spark breaks and eye shields
• Wheels are 10" diameter, 7/8" arbor hole
• Base mounted on/off switch and rubber feet to minimize vibration
• Wheel guards and tool rests are cast iron
• Furnished with GA9 lighted eye shields
• GA25 Tool tray
• GA24 Water pot
• Designed to comply with OSHA standards under normal usage
• Supplied with 36 and 60 Grit Wheels
• Factory connected for 115 volts, no power cord
• Shipping Weight: 145 lbs
• Light bulbs are not supplied

Specifications:

• Catalog Number | 1022WD
• Specification Number | G10-237-2
• Horsepower | 1
• Voltage | 115/230
• Hertz | 60
• Phase | 1
• Amps | 5.4/2.7
• RPM | 1800
• Baldor Type |3528c
• Max Wheel Size |10"
• Bearings |6206
• Mechanical Specification Number | G0LY0237
• Electrical Specification Number | G0WG0002
• UL Listed | Yes
• CSA Certified | No

** Factory connected for 115 volts, no power cord **

GA16 Features:

• Cast Iron Pedestal
• For 6", 7", 8" and 10" grinders
• Carbide and diamond wheel grinders
• ¼ Hp through 1½ Hp buffers and belt grinders

Specifications:

• Height | 32-7/8"
• Shipping Weight | 62 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

This Baldor Grinder/Pedestal Package ships by truck and the shipping charges calculated are to a commercial address only. If non-commercial, check the residential shipping option above. Manufacturer's Warranty Only! By purchasing this item, you agree to Baldor's Terms and Conditions.
