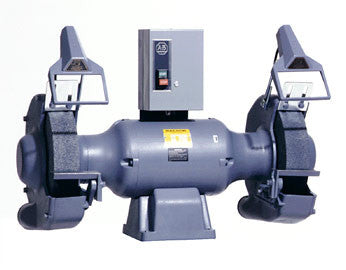

Cast iron tool rests & exhaust type wheel guards. Magnetic starter with overload protection. Also includes lighted eye shield (bulbs not included). Suitable for 50/60 Hz operation. Wheels sold separately.

Features:

Built for heavy-duty grinding, powered by a 5 HP, Baldor 3 Phase Motor Slim design provides plenty of working room for grinding long, odd shaped pieces Cast iron exhaust-type guards accommodates a 5" diameter vent pipe Adjustable cast iron tool-rest, stamp steel spark breaks and eye shields Grinder supports optional wheels 14" x 3" wide, arbor size is 1-1/4" Magnetic starter with overload protection mounted on grinder Furnished with GA9 lighted eye shields Designed to comply with OSHA standards under normal usage Shipping Weight: 359 lbs UR Agency Approval Factory connected for 230, magnetic starter must be changed for other voltages

Applications:

Used for Heavy duty grinding applications. Specifically for foundry and fabrication shop use. Grinds castings, weldments and prepares parts for welding. The motor is rated 5 horsepower or 7.5 horsepower with 14" diameter x 3" wide wheels. Handles large pieces for grinding.

Specifications:

• Catalog Number | 1406W
• Specification Number | G14-116E-0036G1
• Horsepower | 5
• Voltage | 230
• Hertz | 50//60
• Phase | 3
• Amps | 13.6
• RPM | 1500//1800
• Baldor Type | 3735M
• Max Wheel Size | 14 inches
• Mechanical Specification Number | G4LY0116
• Electrical Specification Number | G4WG0036
• UL Listed | No
• CSA Certified | Yes
