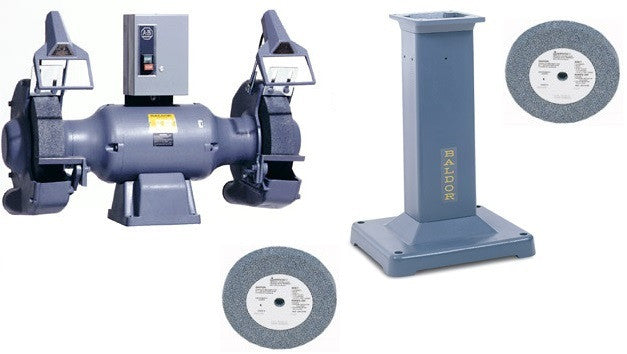

Cast iron tool & exhaust type wheel guards. Magnetic starter with overload protection. Also includes lighted eye shields (bulbs not included). Suitable for 50/60 Hz operation.

Features:

• Built for heavy-duty grinding, powered by a 5 HP, Baldor 3 Phase Motor
• Slim design provides plenty of working room for grinding long, odd shaped pieces
• Cast iron exhaust-type guards accommodates a 5" diameter vent pipe
• Adjustable cast iron tool-rest, stamp steel spark breaks and eye shields
• Grinder supports optional wheels 14" x 3" wide, arbor size is 1-1/4"
• Magnetic starter with overload protection mounted on grinder
• Furnished with GA9 lighted eye shields
• Designed to comply with OSHA standards under normal usage
• Shipping Weight: 358 lbs
• UR Agency Approval
• Factory connected for 230, magnetic starter must be changed for other voltages

Applications:

Used for Heavy duty grinding applications. Specifically for foundry and fabrication shop use. Grinds castings, weldments and prepares parts for welding. The motor is rated 5 horsepower or 7.5 horsepower with 14" diameter x 3" wide wheels. Handles large pieces for grinding.

Specifications:

• Catalog Number | 1408W
• Specification Number | G14-116D-0047
• HorsePower | 5
• Voltage | 575
• Hertz | 50//60
• Phase | 3
• AMPS | 5.5
• RPM | 1500//1800
• Baldor Type | 3735M
• Max Wheel Size | 14 inches
• Mechanical Specification Number |  G4LY0116
• Electrical Specification Number | G4WG0047
• UL Listed | No
• CSA Certified | Yes

GA20 Features:

• Cast Iron Pedestal
• For 8", 10", 12", and 14" grinders
• ¾ through 7½ HP Buffers
• Specifications:
• Height: 30"
• Shipping Weight: 125 lbs

B147 Features:

• Aluminum oxide wheels
• Medium Grade
• Vitrified bond
• Specifications:
• Diameter: 14"
• Face: 3"
• Bore: 1¼"
• Grit: 30
• Shipping Weight: 42 lbs

B148 Features:

• Aluminum oxide wheels
• Medium Grade
• Vitrified bond
• Specifications:
• Diameter: 14"
• Face: 3"
• Bore: 1¼"
• Grit: 46
• Shipping Weight: 41 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This Baldor Industrial Grinder ships by truck and the shipping charges calculated are to a commercial address only. If non-commercial, check the residential shipping option above.
• Manufacturer's Warranty Only!
• For full Baldor warranty description, click here.
• By purchasing this item you agree to Baldor's Terms and Conditions.
