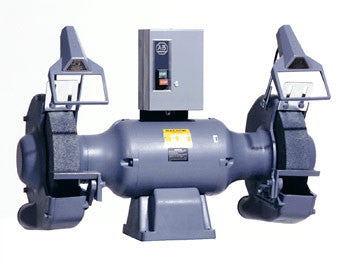

Baldor 14" Industrial Grinder Cast

Cast iron tool rests exhaust type wheel guards. Magnetic starter with overload protection. Also includes lighted eye shields (bulbs not included). Suitable for 50/60 Hz operation. Wheels sold separately.

Features:

Built for heavy-duty grinding, powered by a 5 HP, Baldor 3 Phase Motor
Slim design provides plenty of working room for grinding long, odd shaped pieces
Cast iron exhaust-type guards accommodates a 5" diameter vent pipe
Adjustable cast iron tool-rest, stamp steel spark breaks and eye shields
Grinder supports optional wheels 14" x 3" wide, arbor size is 1-1/4"
Magnetic starter with overload protection mounted on grinder
Furnished with GA9 lighted eye shields
Designed to comply with OSHA standards under normal usage
Shipping Weight: 362 lbs
UR Agency Approval

Applications:

Used for Heavy duty grinding applications. Specifically for foundry and fabrication shop use. Grinds castings, weldments and prepares parts for welding. The motor is rated 5 horsepower or 7.5 horsepower with 14" diameter x 3" wide wheels. Handles large pieces for grinding.

Specifications:

• Catalog Number | 1410W
• Specification Number | G14-116F-0036G1
• Horsepower | 5
• Voltage | 460
• Hertz | 50//60
• Phase | 3
• Amps | 6.8
• RPM | 1500//1800
• Baldor Type | 3735M
• Max Wheel Size | 14 inches
• Mechanical Specification Number | G4LY0116
• Electrical Specification Number | G4WG0036
• UL Listed | No
• CSA Certified | No
