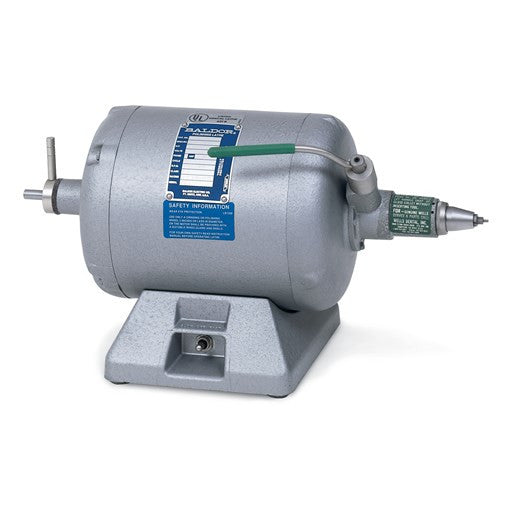

Baldor 380WCT 1/3 HP 2-Speed Polishing Motor 115V/60h

Baldor polishing lathes have features preferred by Dentists, dental lab technicians, jewelers, lapidary and others for precision, trouble-free polishing. All lathes are supplied with 8-foot cord with plug, rubber feet and heavy construction to minimize vibration, provisions for mounting to a laboratory bench are provided as well. Baldor polishing motors are sealed bearing high-performance heavy-duty motors made for many years of continuous trouble-free use. The dynamically balanced rotor and shaft provides vibration free and amazingly quiet operation. The sealed ball bearings are lubricated for life and will never be affected by dust and debris. All this in a made in the USA product with a full 3-year warranty. Taper fit spindles sold separately, 115V/60H, 3 amps. This is the Baldor 380WCT 2-speed 1/3 HP polishing motor with taper fit shafts. Baldor taper fit shafts use special taper fit spindles that slide onto the taper fit shafts and then are "tapped" at the spindle end for a secure friction fit. Spindles are removed by rotating the spindle removing rings. As the screw-fit rings rotate out, they push the friction fit spindles off the shaft. The 380WCT measures 14-1/4" from tip to tip of the taper fit shafts. The shaft height is 5-1/4" measured from the middle of the shafts.

Features:

• Moisture resistant copper windings
• 0.355in Shaft with 0.25in Taper per ft.
• Totally enclosed construction
• Rubber feet
• UL and CSA listed
• 3-year warranty
• 8-foot, 3 conductor cord with plug is standard
• Factory connected for 115 volts, power cord without plug
• Dual Speed
• Right side comes equipped with Wells Dental "Super Quick" chuck, 2 mandrels, 2 stone, 1 arbor band, 1 soft wheel chuck
• Single shaft, right side

Applications:

Preferred by Dentists, Dental Lab Technicians, Jewelers, Lapidary and others for precision, trouble free polishing.

Specifications:

• Specification| L35-243-160
• HP | .33/.17
• Volts | 115
• Phase | 1
• AMPS | 3.3/2.1
• Cycle | 60
• RPM | 3450/1725
• CL | F
• Rating | 40C AMB-CONT
• Hertz | 60
• PH | 1
• Shaft | .376"
• Voltage | 115
• Speed | 3450/1725 RPM
• Weight | 47 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• Manufacturer's Warranty Only
• By purchasing this item, you agree to Baldor's Terms and Conditions.
