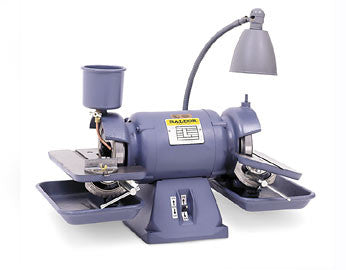

Baldor Diamond Wheel Tool Grinders feature all cast iron construction. Precision built, they have locked double row bearings and a maximum runout of .002 for precise tool and die work. Accommodates cup wheels with 1¼" center hole. Large tool tables with protractor type tool support. Light and water pot with spout and faucet that can be moved to either side are standard equipment. Diamond wheels sold separately.

Features:

• Precision built, for precision work, powered by ½ HP reversible Baldor motor
• Locked double row bearings provide vibration free operation
• Maximum .002 runout on face at outside edge, for precise tool & die work
• Large tool tables with protractor on each end to help indicate angle
• Protractor type tool support supplied, can be set into slot on either tool table
• Supplied with tool light on swivel mount may be placed over either wheel
• Water pot with spout and faucet, can be moved over either wheel
• Accommodates steel backed cup wheels 6" diameter, ¾" face, 1¼" center hole diamond wheels, sold separately
• Shipping Weight: 109 lbs
• UL Agency Approval
• Factory connected for 208-230 volts, Factory voltage changes are extra and add approximately 4-6 weeks additional lead time. no power cord

Applications:

Baldor diamond wheel tool grinder is used for sharpening Carbide tipped machine tools. The diamond abrasive wheels used with this Grinder along with the .002 maximum wheel flange run-out ensure precision sharpening of the tools. Precision sharpening helps prolong tool life.

Specifications:

• Catalog Number | 532
• Specification Number | A-742-341
• Horsepower | 1/2
• Voltage | 208-230/460
• Hertz | 50//60
• Phase | 3
• Amps | 2.1-2/1
• RPM | 3000//3600
• Baldor Type | 3524M
• Max Wheel Size | 6"
• Bearings | 5204
• Mechanical Specification Number | ALY0742
• Electrical Specification Number | G9WG0341
• UL Listed | Yes
• CSA Certified | No
