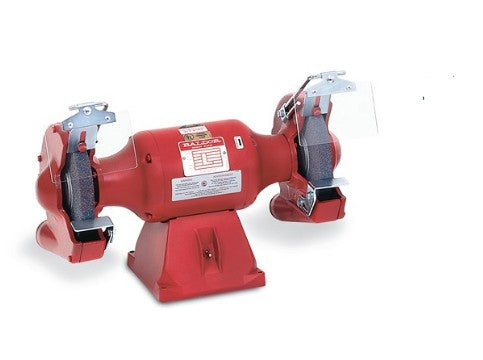

Baldor Bench Grinder

Big Red Grinders are available with 6", 7" or 8" wheels, equipped with base mounted on/off switch and 8 foot cord with plug. Rubber mounting feet help minimize vibration. Models ending in "E" have exhaust type wheel guards.

Features:

• Built for heavy-duty grinding, powered by ¾ HP Baldor single motor
• Slim design provides extra clearance for grinding odd shaped pieces.
• Cast iron exhaust-type guards accommodate a 3" diameter vent pipe.
• Adjustable cast iron tool-rest, stamp steel spark-breaks and eye-shields.
• Grinder supplied with one coarse (36)-grit and one medium (60)-grit aluminum-oxide grinding wheel.
• Wheels are 8" diameter, ¾" arbor hole.
• Base mounted on/off switch and rubber feet to minimize vibration.
• Includes 8-ft. 3-conductor power cord.
• 8 inch red grinder
• Two wheels 8" x 1" x ¾"
• Wheel guards are cast iron exhaust type
• Furnished with GA11 eye shields
• Designed to comply with OSHA standards under normal usage
• Shipping Weight: 99 lbs
• UL Agency Approval
• Supplied with 36 and 60 grit wheels
• Stamp steel tool rests
• Factory connected for 115 volts, power cord supplied

Applications:

General purpose grinding. Used for shaping and objects by removing material. Sharpens tools. 3/4 horsepower motor is suitable for heavy grinding.

Specifications:

• Catalog Number | 812RE
• Specification Number | G8-212-11
• Horsepower | 3/4
• Voltage | 115/230
• Hertz | 60
• Phase | 4.8/2.4
• RPM | 3600
• Baldor Type | 3524C
• Max Wheel Size | 8 inches
• Bearings | 6206
• Mechanical Specification Number | G8LY0212
• Electrical Specification Number | G8WG0011
• UL Listed | Yes
• CSA Certified | No

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck and the shipping charges calculated are to a commercial address only. If non-commercial, check the residential shipping option above.
• Manufacturer's Warranty Only!
• For full Baldor warranty description, click here.
• By purchasing this item you agree to Baldor's Terms and Conditions.
